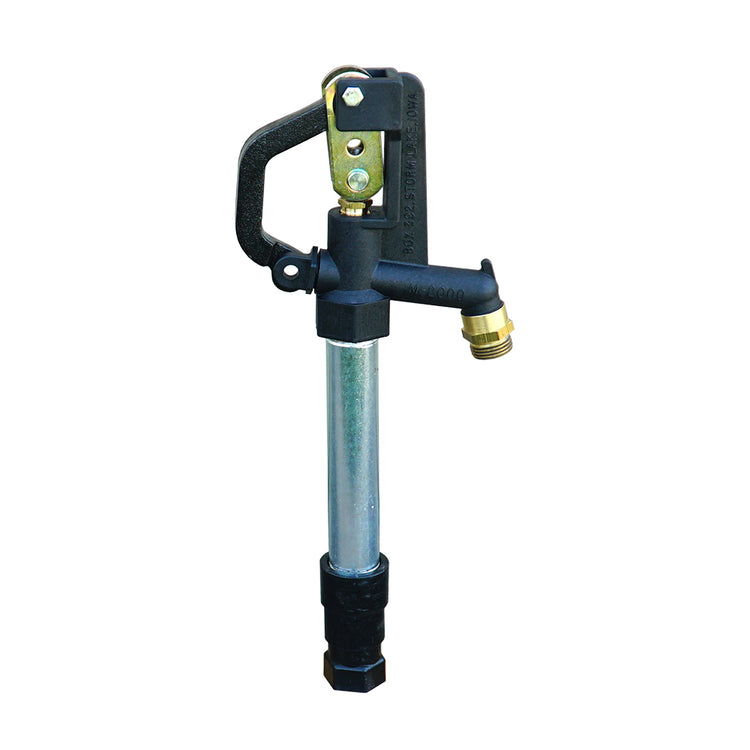

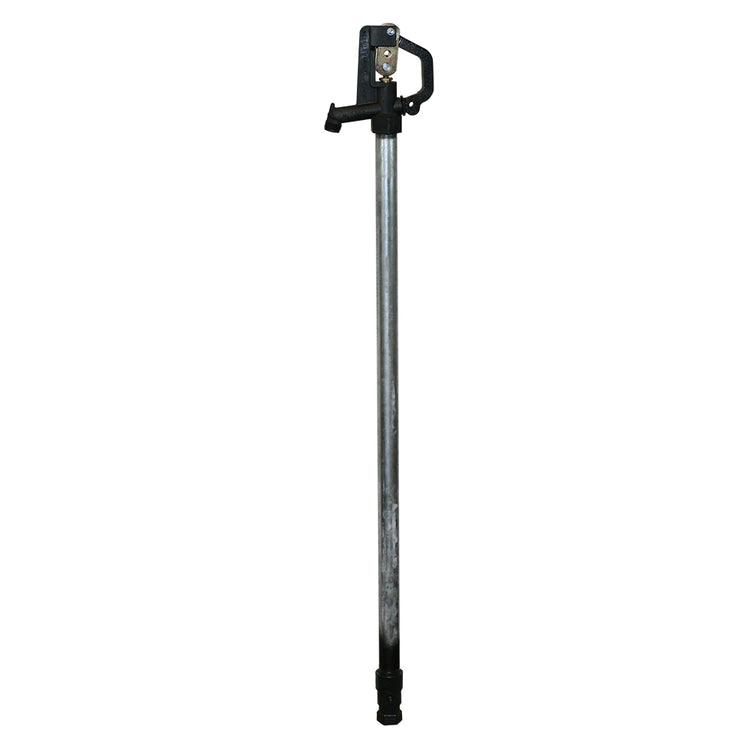

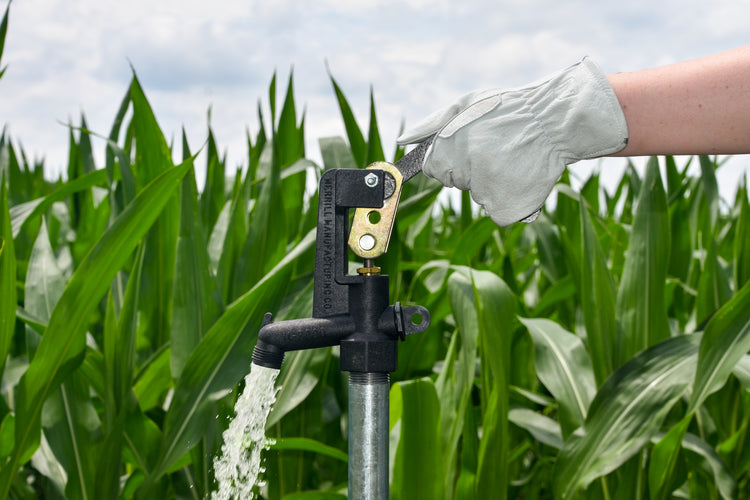

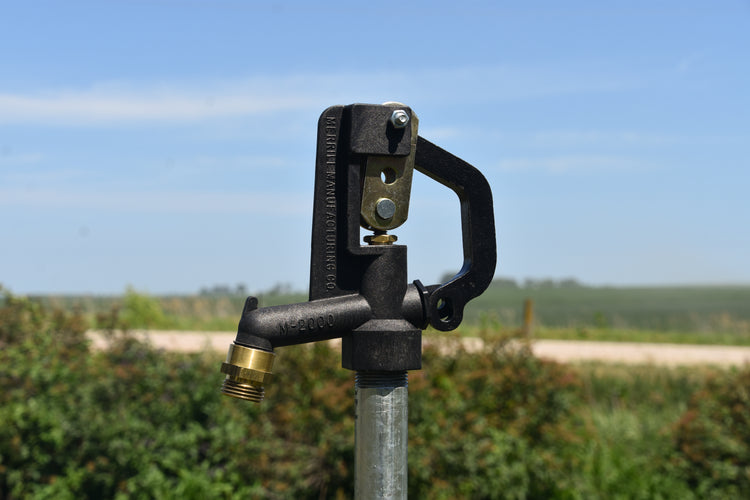

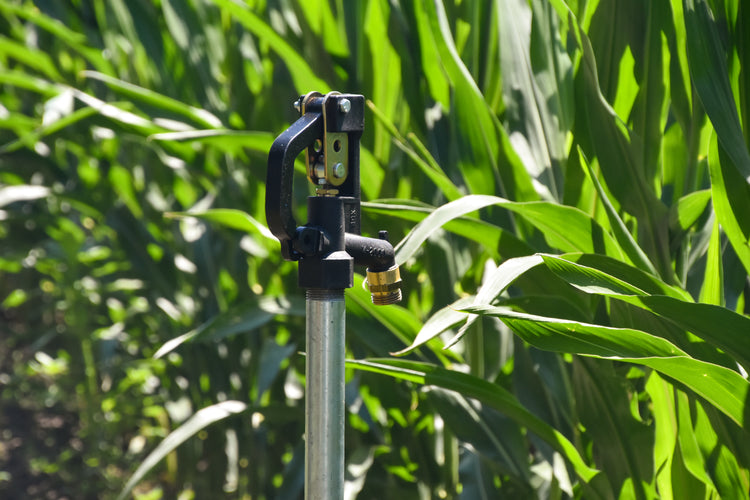

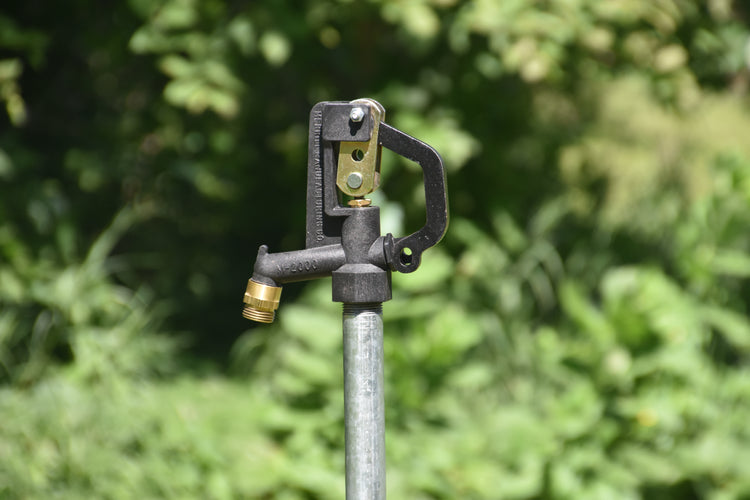

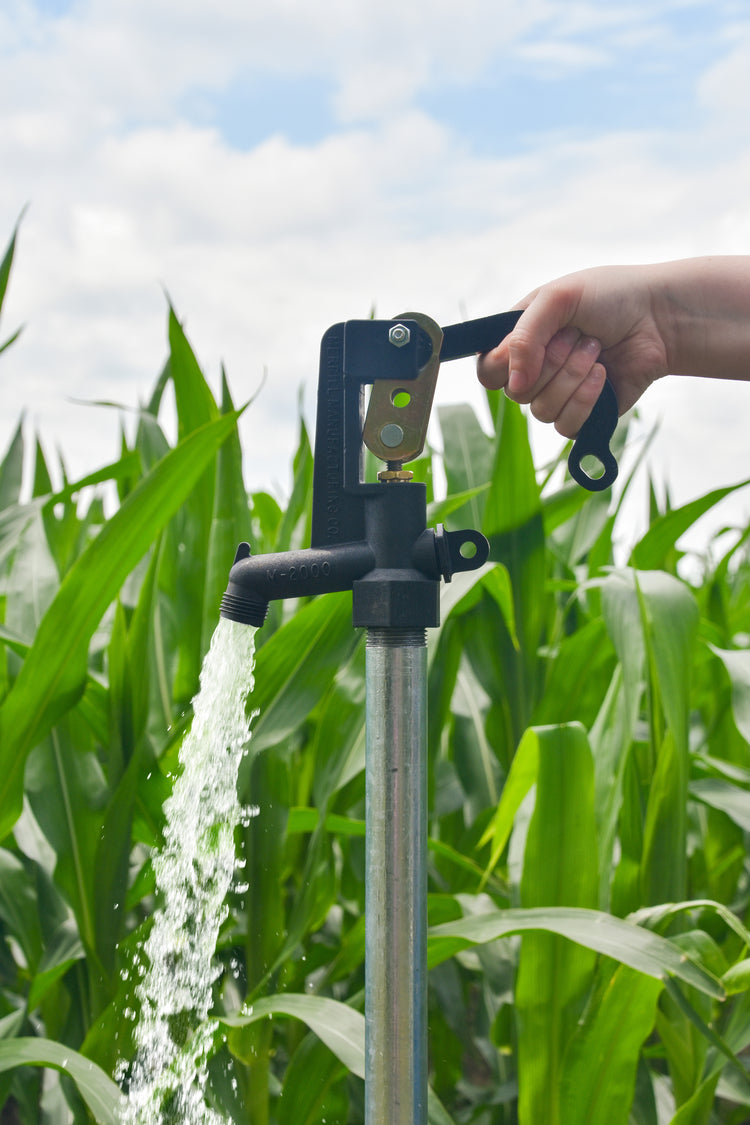

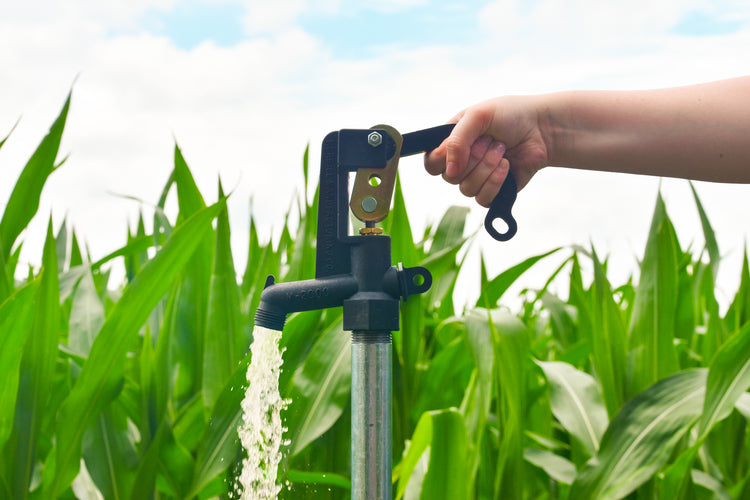

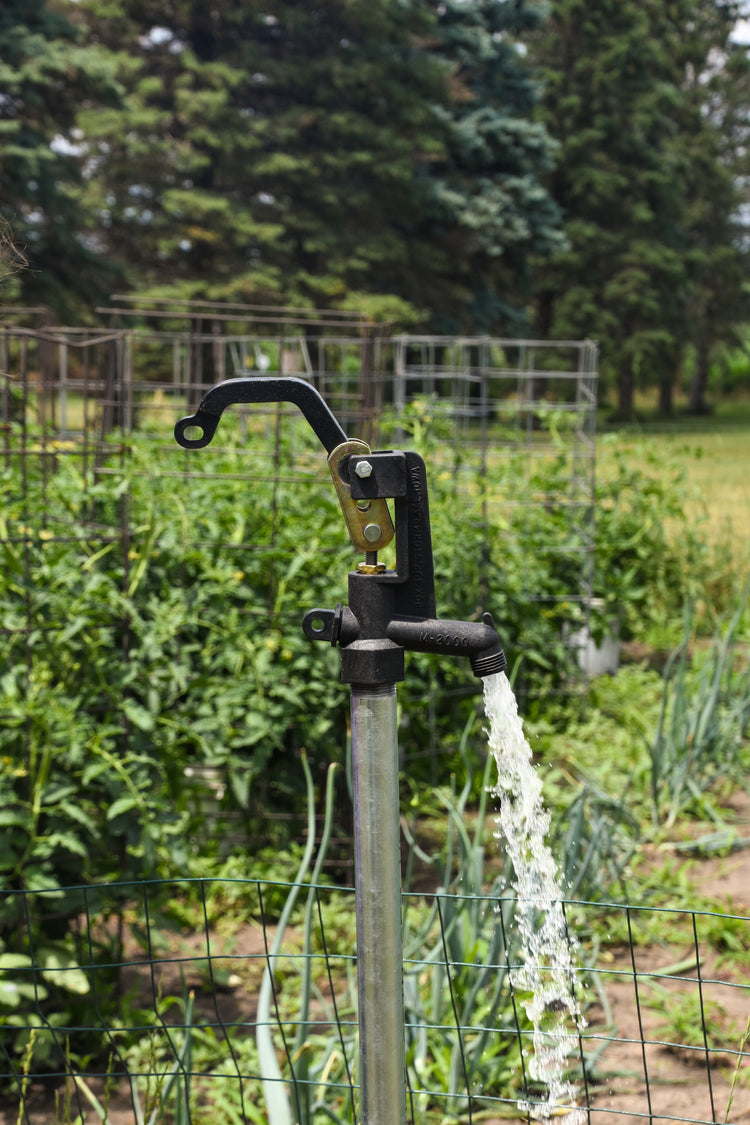

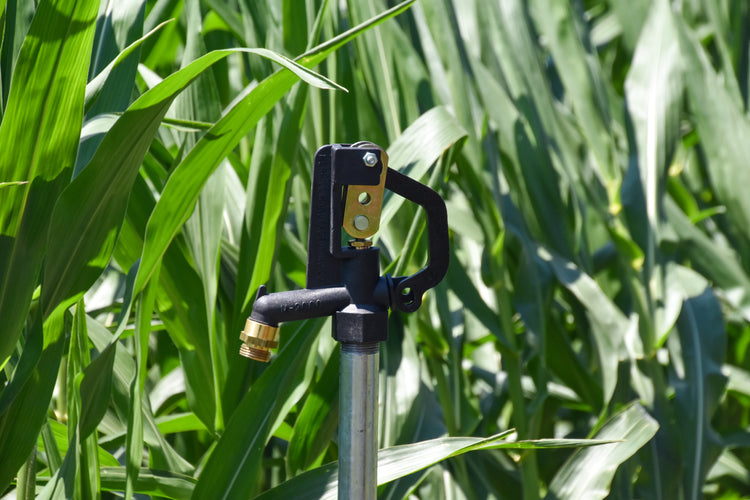

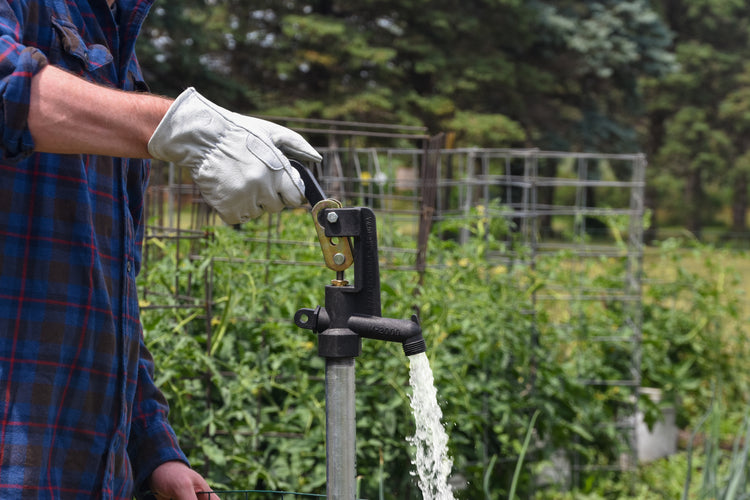

M-2000 Frost Proof Yard Hydrant

SKU:

Barcode:

The Merrill M-2000 Yard Hydrant is the only Merrill hydrant with a non-cast iron head. Made of DuPont's™ Zytel® ST Thermoplastic, the M-2000 offers a more forgiving head solution compared to its cast-iron counterparts. The fiber-reinforced Thermoplastic greatly reduces breakage, eliminates machin......Read more

  • $93.00

Material
Hydrant Type
Bury Depth
+ -
  • amazon payments
  • american express
  • apple pay
  • diners club
  • discover
  • elo
  • google pay
  • jcb
  • master
  • paypal
  • venmo
  • visa
Description

The Merrill M-2000 Yard Hydrant is the only Merrill hydrant with a non-cast iron head. Made of DuPont's™ Zytel® ST Thermoplastic, the M-2000 offers a more forgiving head solution compared to its cast-iron counterparts. The fiber-reinforced Thermoplastic greatly reduces breakage, eliminates machining, and takes painting and corrosion out of the equation. The hydrant also boasts full lever control allowing for superior flow control from a trickle to a full rush and everywhere in between. Adjustments controlled by easily rusted set screws have been replaced with a pivot connector and nuts enabling you adjustability over the life of the hydrant. Our heavy-duty Celcon® valve body eliminates potential corrosion in all water conditions creating a long valve body life. A swivel part design enables users to remove the hydrant's internal parts for checking or replacement all without digging up the unit. The incorporated drain hole allows water to drain out creating confidence in year-round use in all climates.

Repair Parts

How-To Video Gallery

Specifications

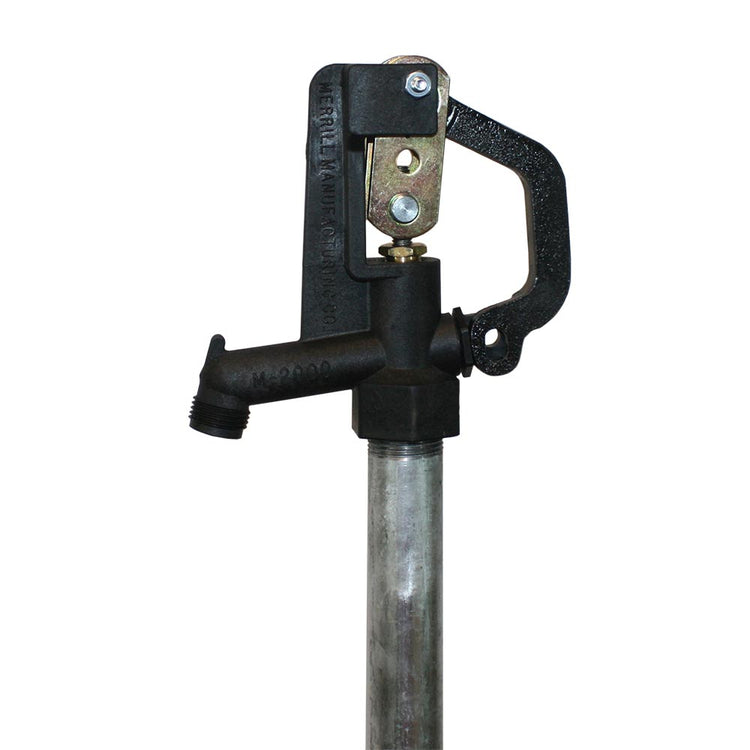

Standard 3/4" M-2000

Inlet - 1" NPT
Outlet - 3/4" Hose Thread Adapter
Stainless Steel Operating Rod Thru Teflon Packing
1" Galvanized Stand Pipe

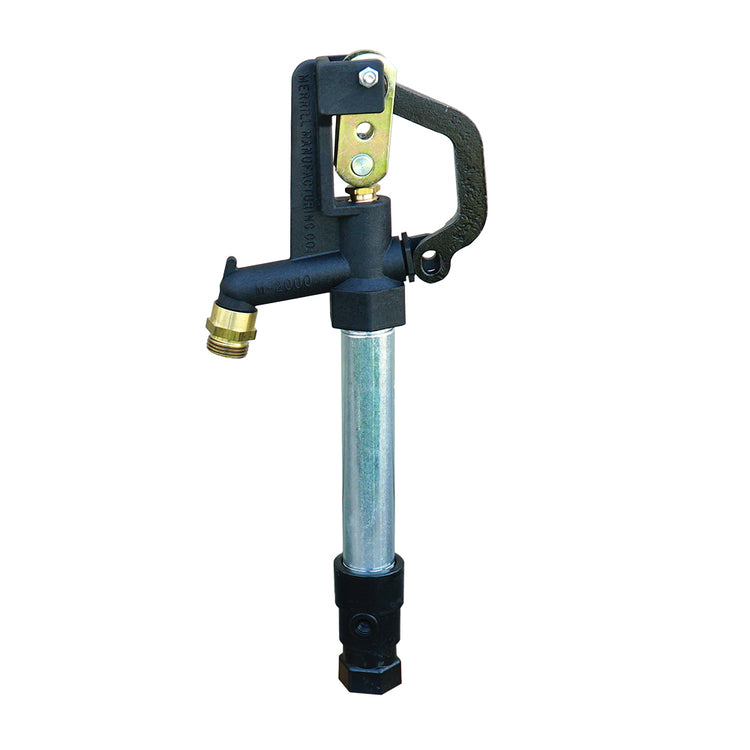

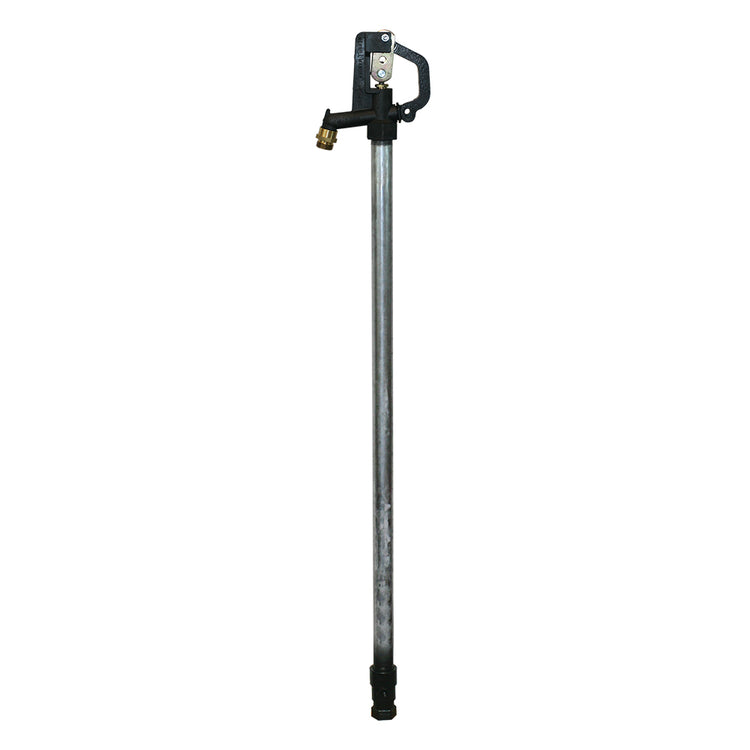

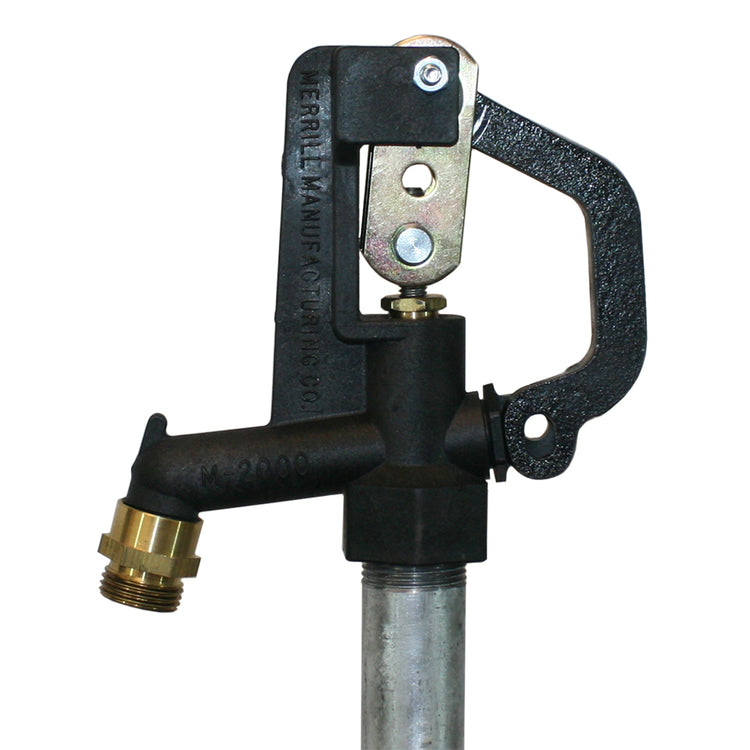

Standard 3/4" M-2000 with Hose Adapter

Inlet - 1" NPT
Outlet - 3/4" Hose Thread Adapter
Stainless Steel Operating Rod Thru Teflon Packing
1" Galvanized Stand Pipe

Features & Benefits

Full Lever Control - Placement of handle sets flow control

1040 Steel Draw Straps - Reduced wear of straps and eliminates side pull on operating rod

Stainless Steel Operating Rod - Adds years to operating life

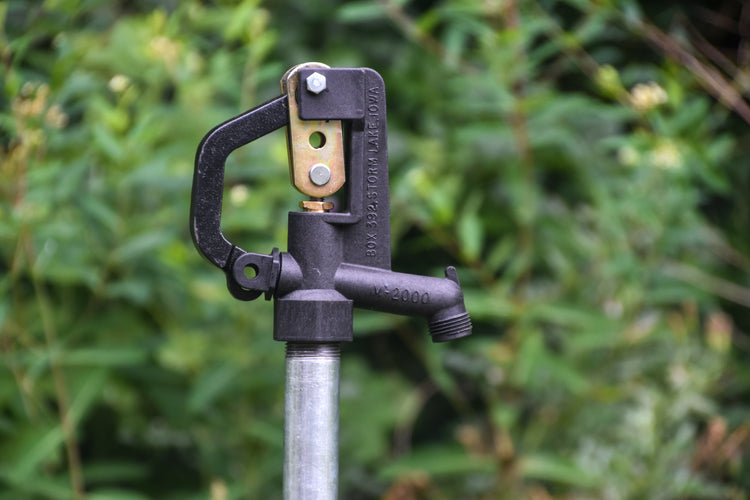

Fiber Reinforced Thermoplastic Head - greatly reduces breakage of brittle cast iron, eliminates machining, painting, and corrosion. Provides consistent, precise parts and a long life cycle. Made of Zytel® ST (supertough) by DuPont™, one of the "World's Toughest Thermoplastics."

Nozzle on Head - has standard 3/4" hose thread molded on the outside and has 3/8" NPT thread molded into the inside

Pivot Connector with Two Nuts - Easily adjusted for years without the rusted and stuck set screws concern

No Exposed Threads - No exposed steel threads to rust

One Piece Plunger - Uses double seal design for a shutoff you can depend on

Self-Lubricating Plunger - Diminishes concern over sticking and bonding creating a longer life

Heavy-Duty Celcon® Valve Body - Eliminates corrosion in any water condition and provides a long life

Locking Eye - Hydrants can be locked in the off position

Swivel Parts - Enables removal and replacement of internal parts without digging up the hydrant
