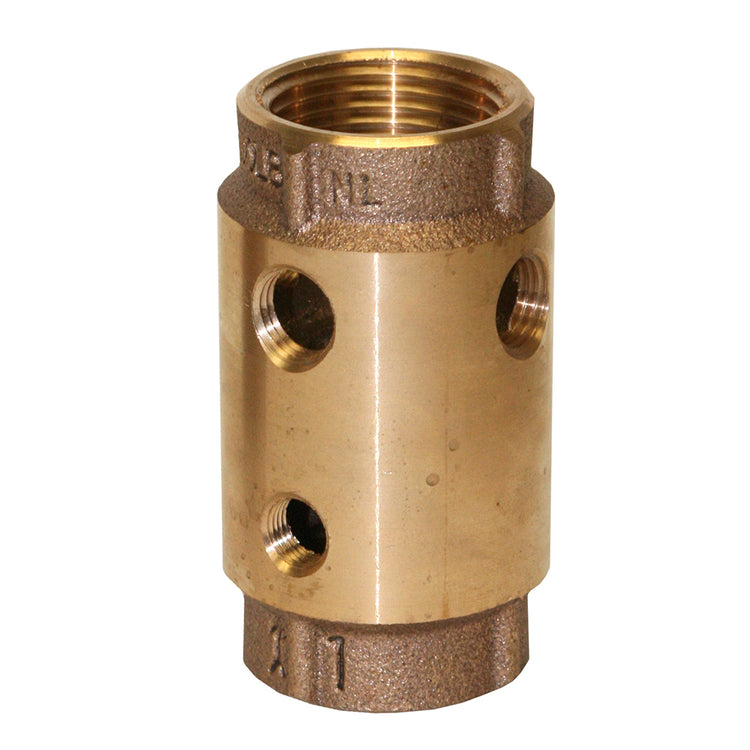

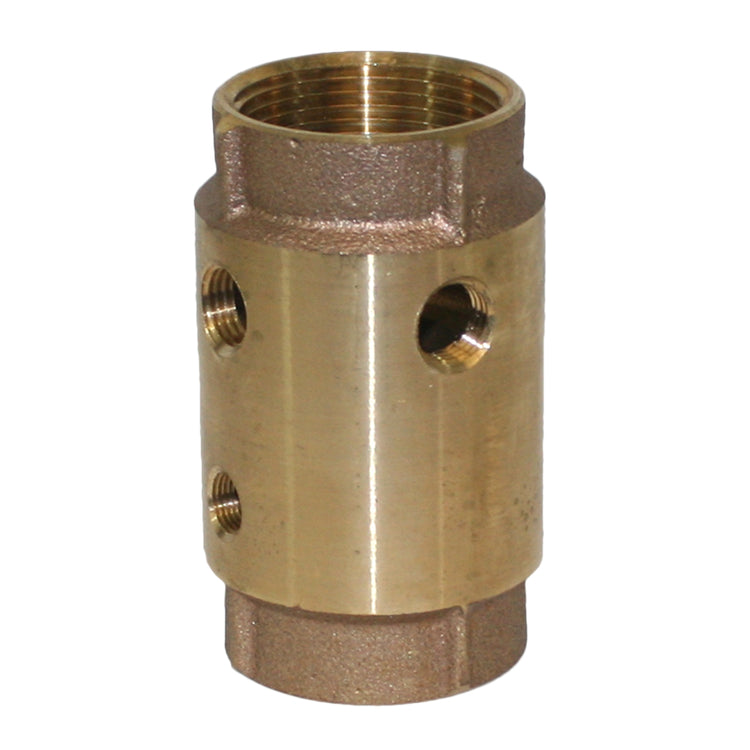

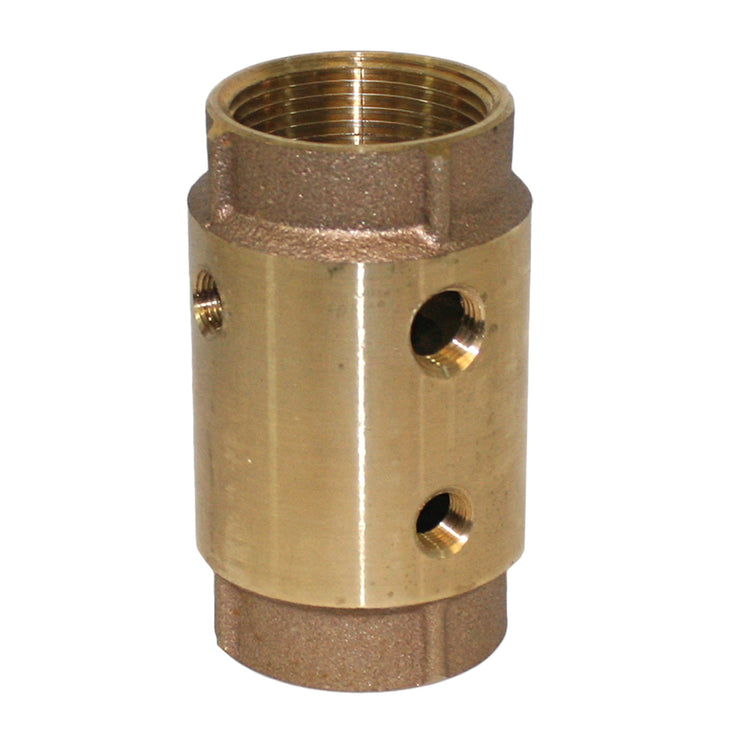

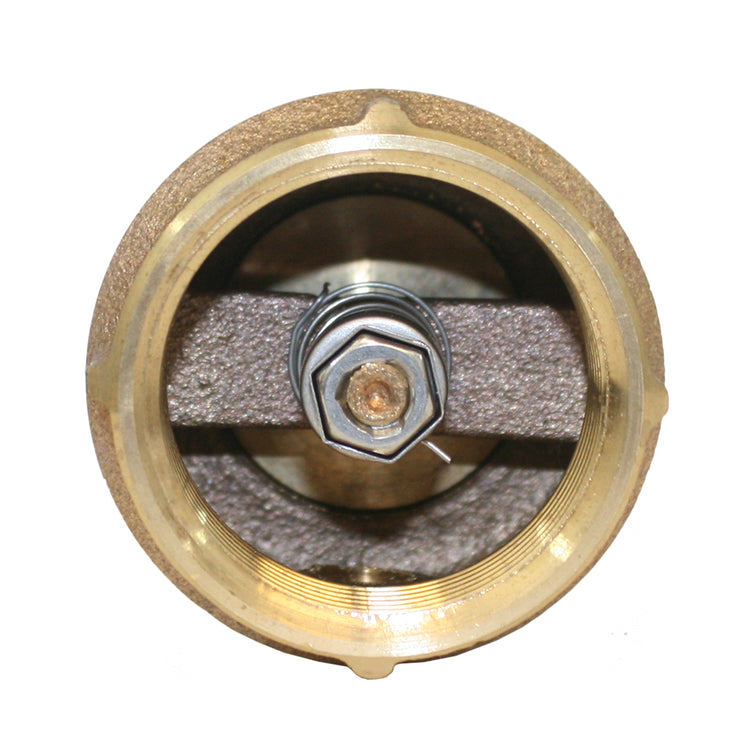

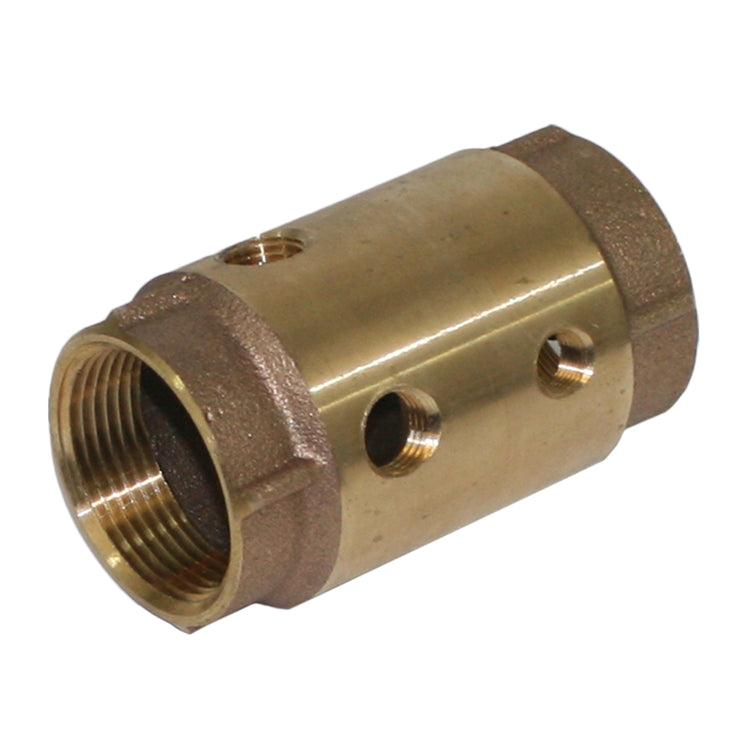

No Lead Bronze Control Center Check Valves 4 Tappings

SKU:

Barcode:

- No-spin poppet - Inlet side - one 1/8" - Outlet side - one 1/8" and two 1/4" - Finished valve body and poppet assembly are cast from no-lead bronze - Abrasion-resistant o-ring is precision fitted to the poppet for a positive seal into the tapered self-cleaning valve seat - Check valve has ......Read more

  • $36.93

Pipe Size
Inlet Tapping
Outlet Tapping
+ -
  • amazon payments
  • american express
  • apple pay
  • diners club
  • discover
  • elo
  • google pay
  • jcb
  • master
  • paypal
  • venmo
  • visa
Description

- No-spin poppet

- Inlet side - one 1/8"

- Outlet side - one 1/8" and two 1/4"

- Finished valve body and poppet assembly are cast from no-lead bronze

- Abrasion-resistant o-ring is precision fitted to the poppet for a positive seal into the tapered self-cleaning valve seat

- Check valve has Delrin guide bearing for the poppet steam, assures smooth, noise-free valve operation

- Corrosion-resistant materials - stainless steel spring, no lead bronze castings, and stainless steel lock nut

- Can be used in both vertical and horizontal positions

NOTE: All Merrill check valves and foot valves, water, oil or gas, working pressure 200 PSI, maximum operating temperature 190 degrees Fahrenheit
