Sediment Trapper Sediment Filters

SKU:

Barcode:

Sediment Trapper Model  - SLIPxSLIP connections - Larger reservoir for more sediment - Centrifuge spin-down type sediment separation - Unique element design traps sediment in the lower reservoir of clear cover - Reusable polyester or stainless steel filter screens with several mesh sizes ava......Read more

  • $111.00

Pipe Size
Opening Size
Mesh - Micron Size
+ -
  • american express
  • apple pay
  • diners club
  • discover
  • elo
  • facebook pay
  • google pay
  • jcb
  • master
  • paypal
  • venmo
  • visa
Description

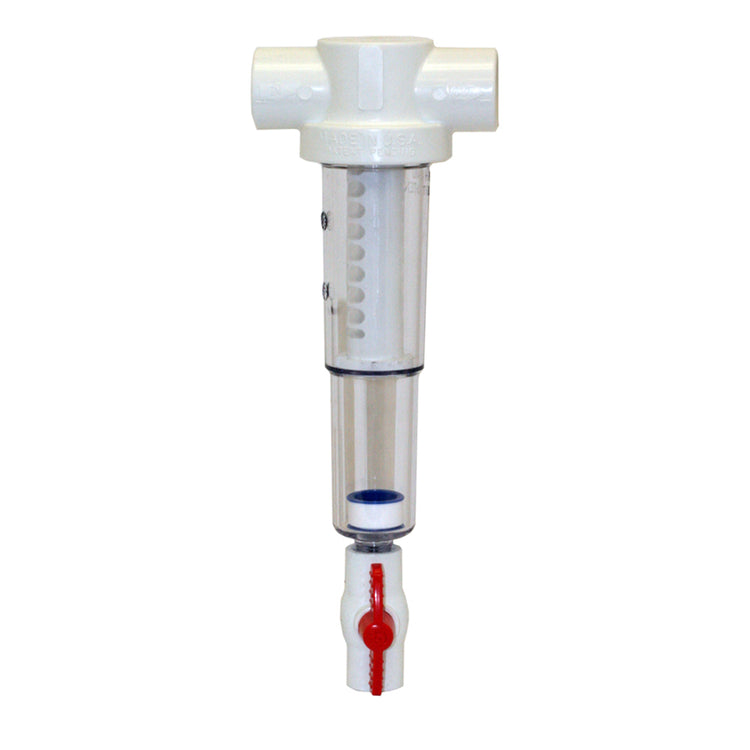

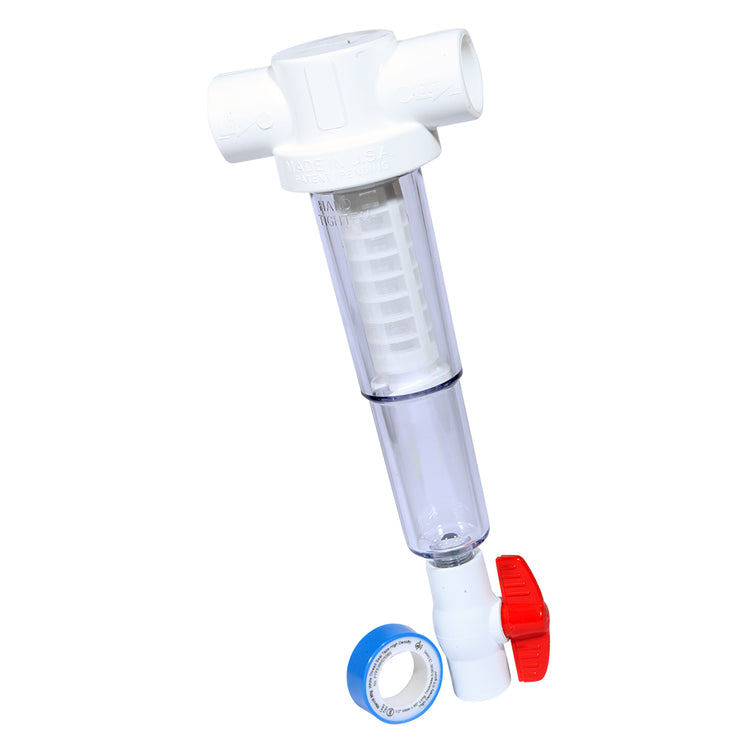

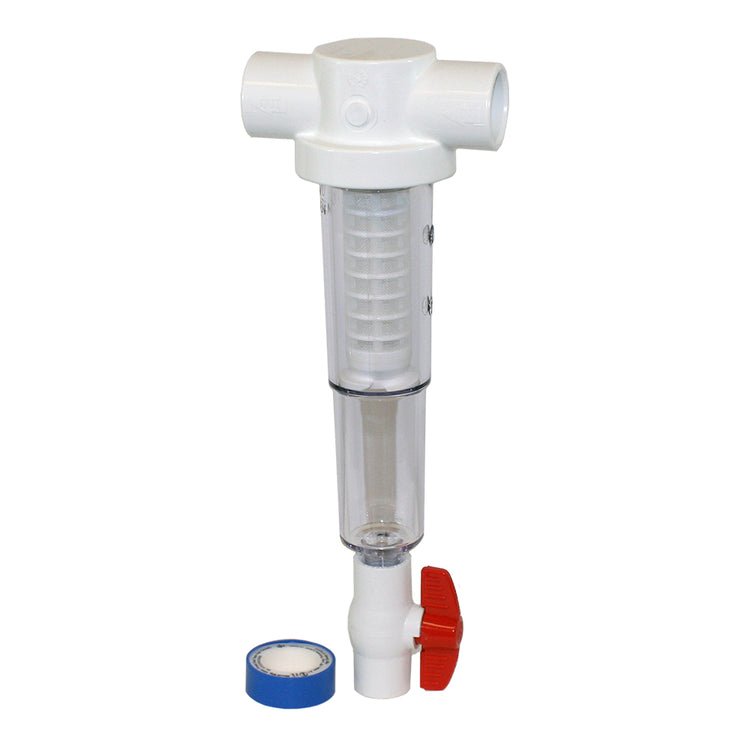

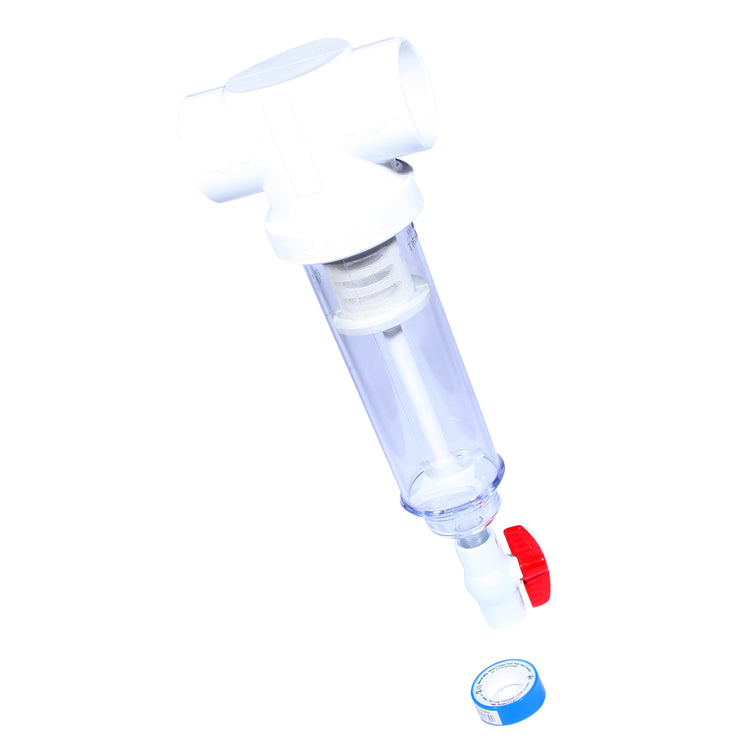

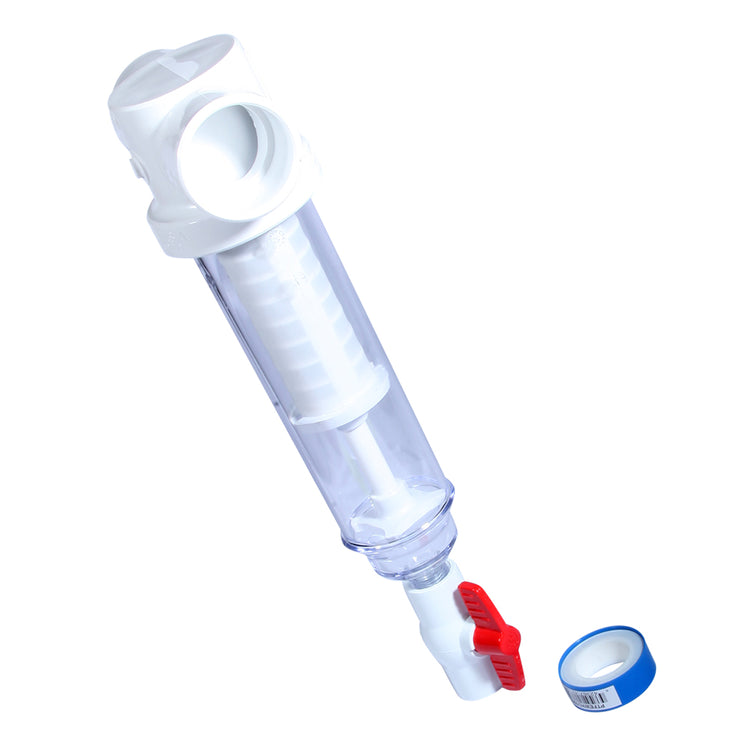

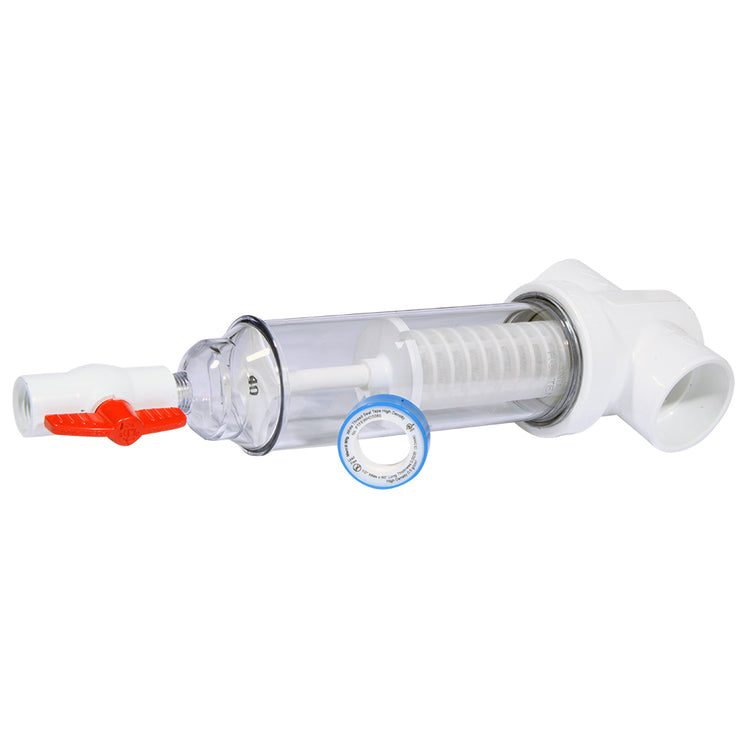

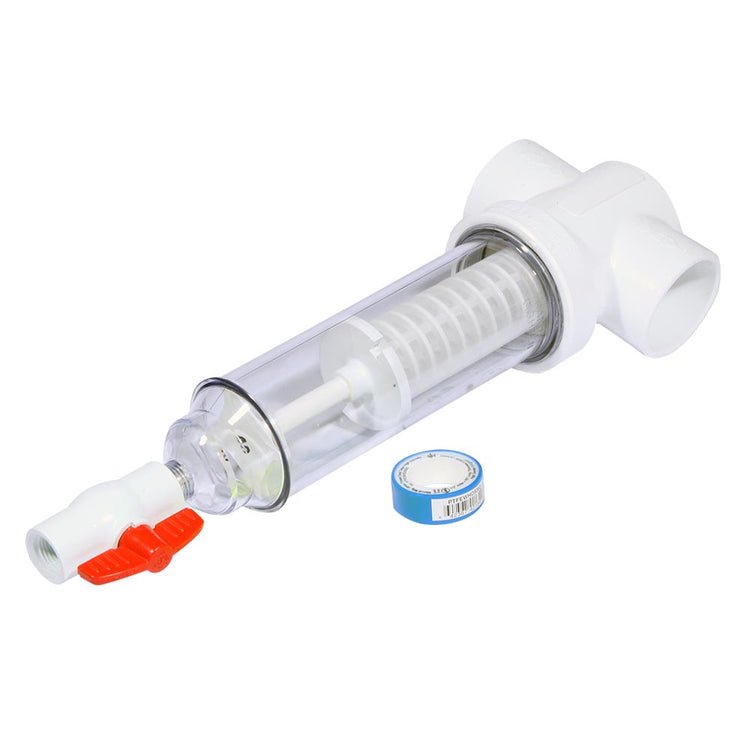

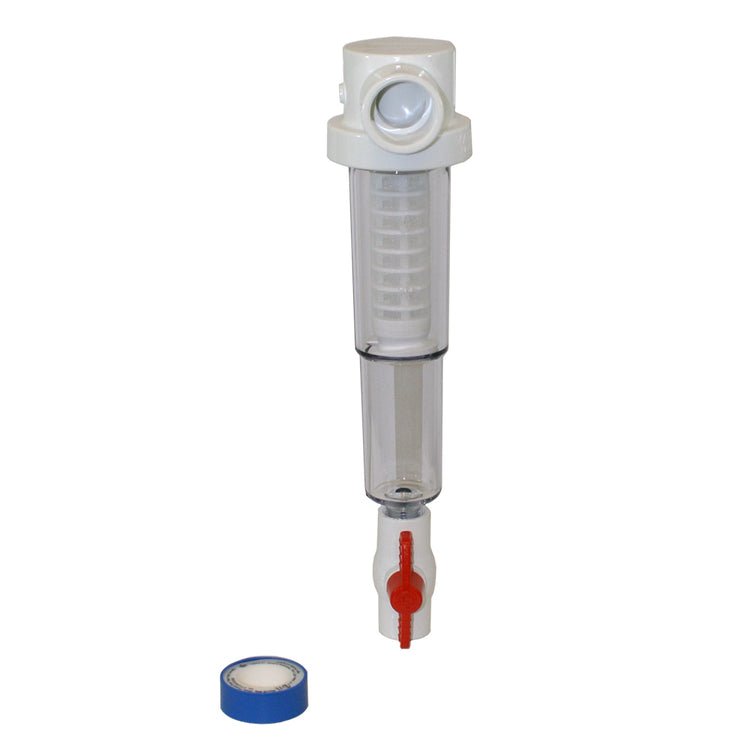

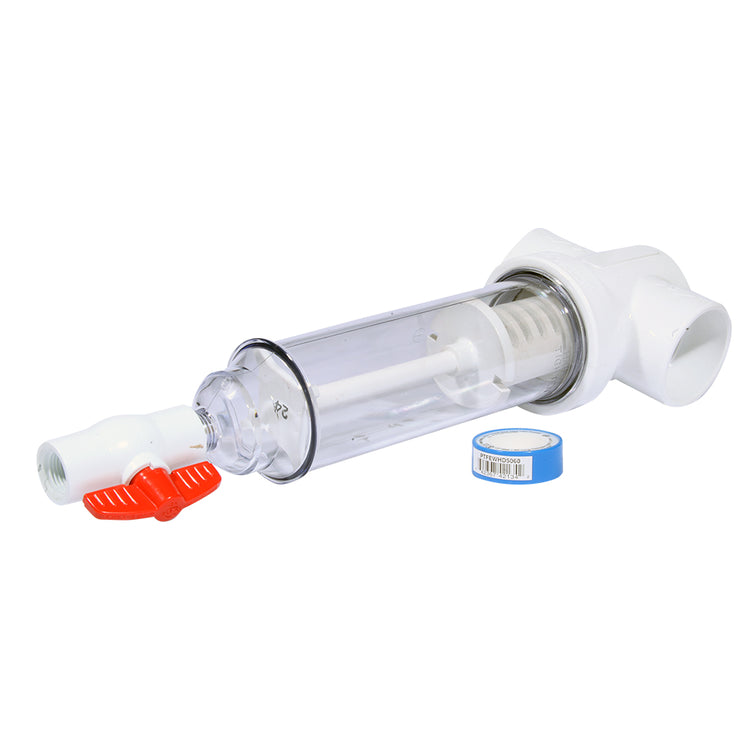

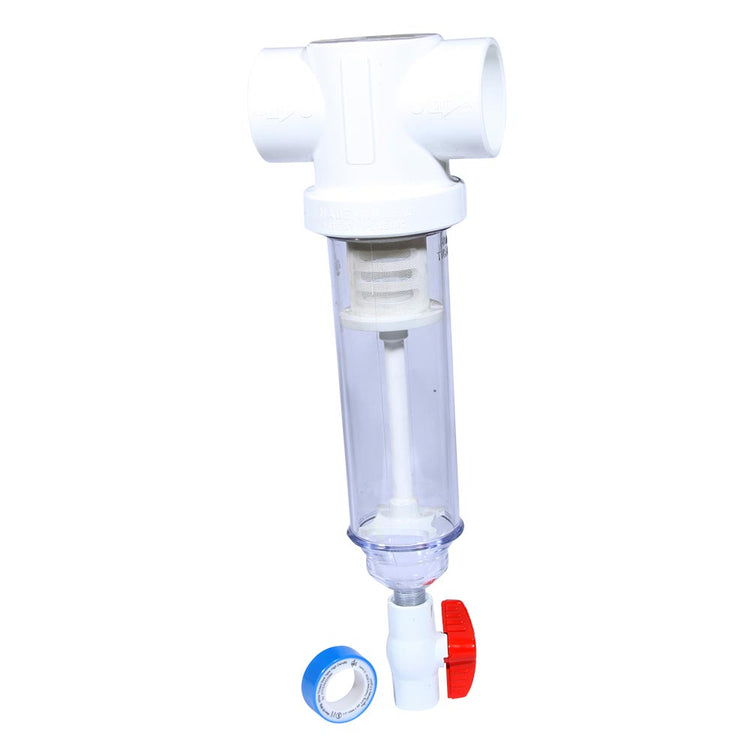

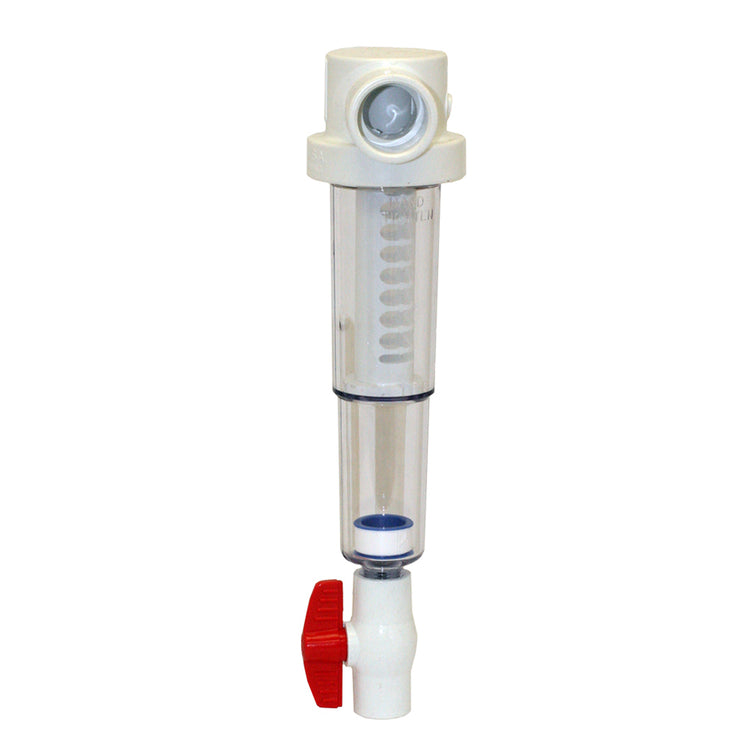

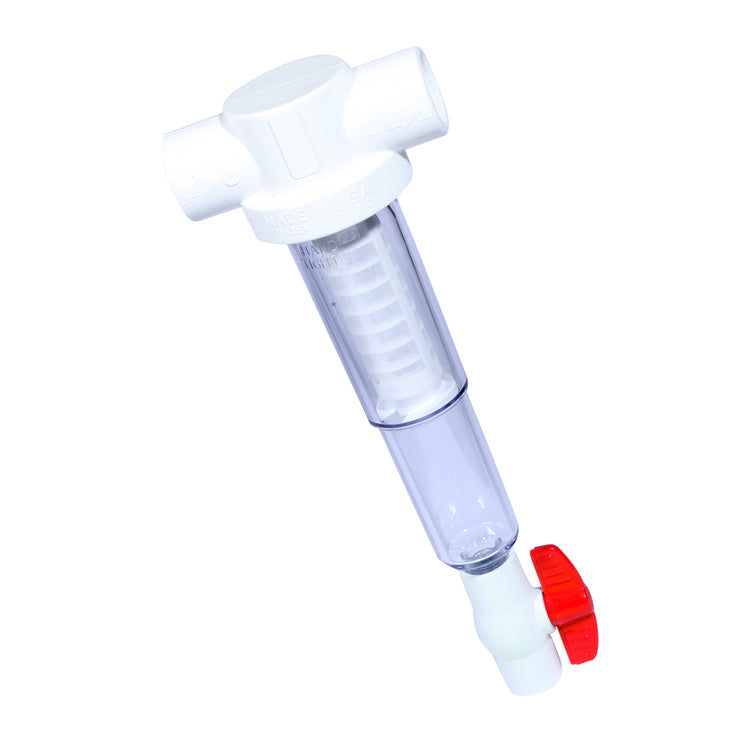

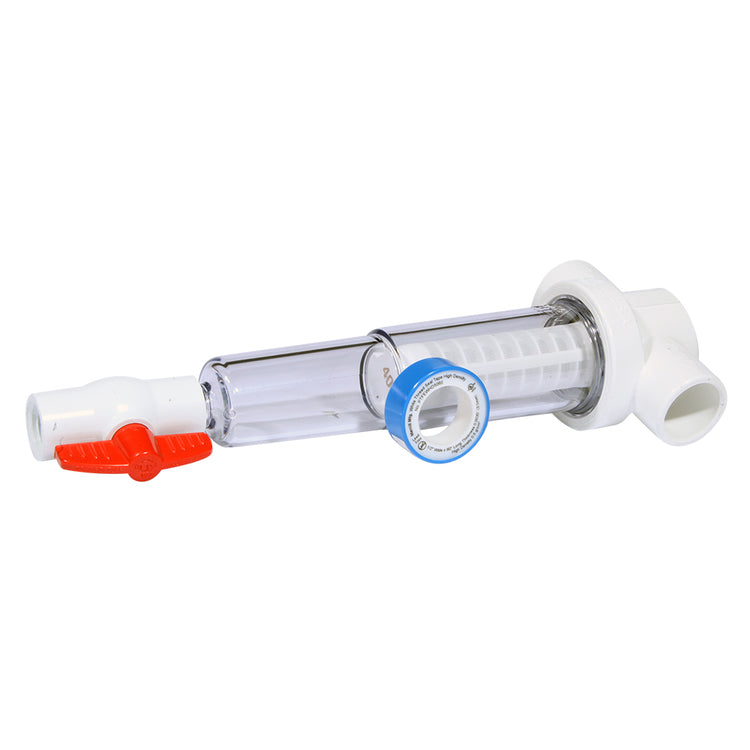

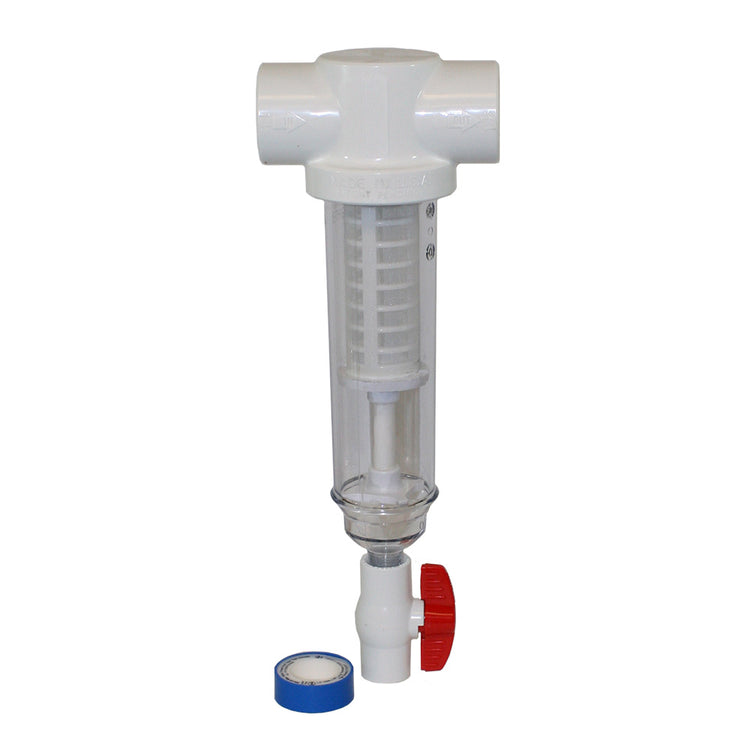

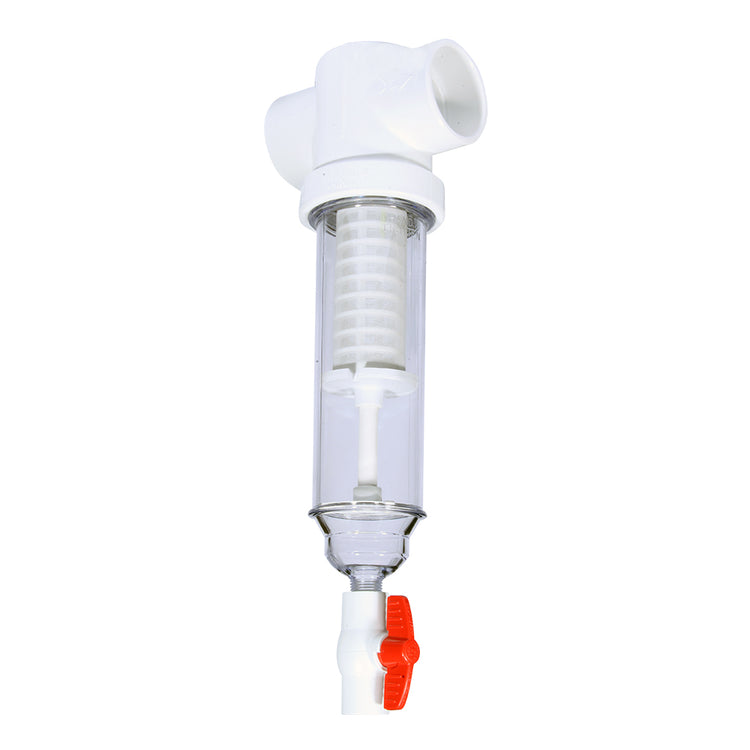

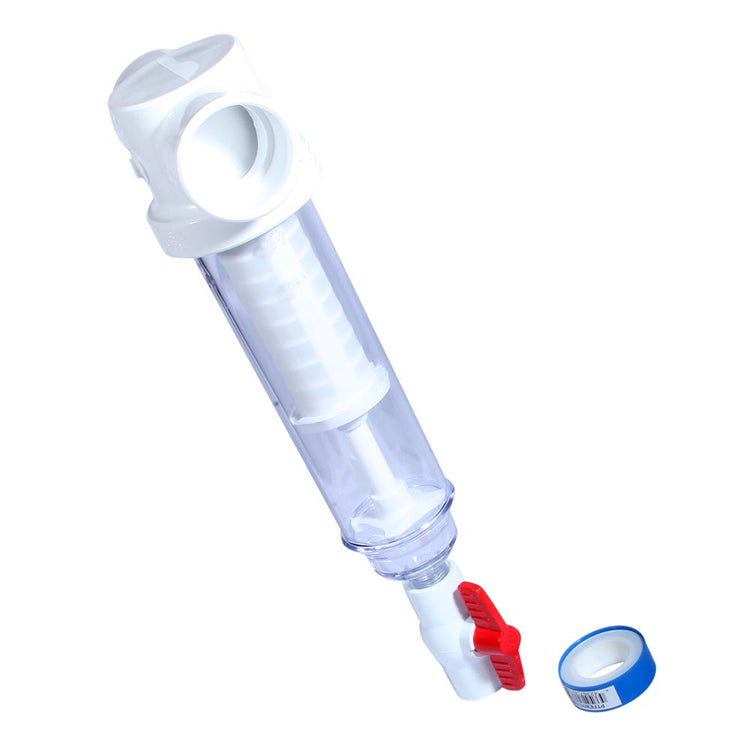

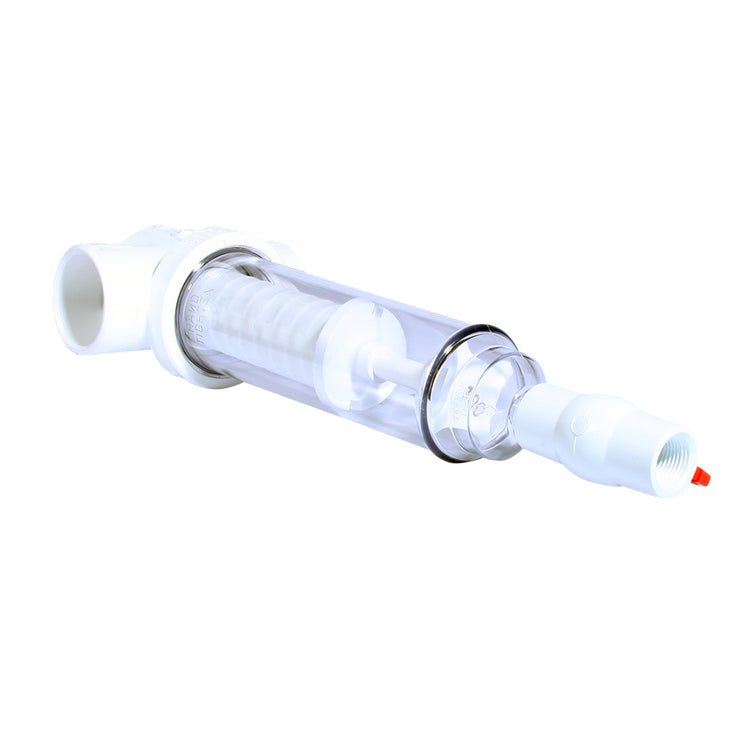

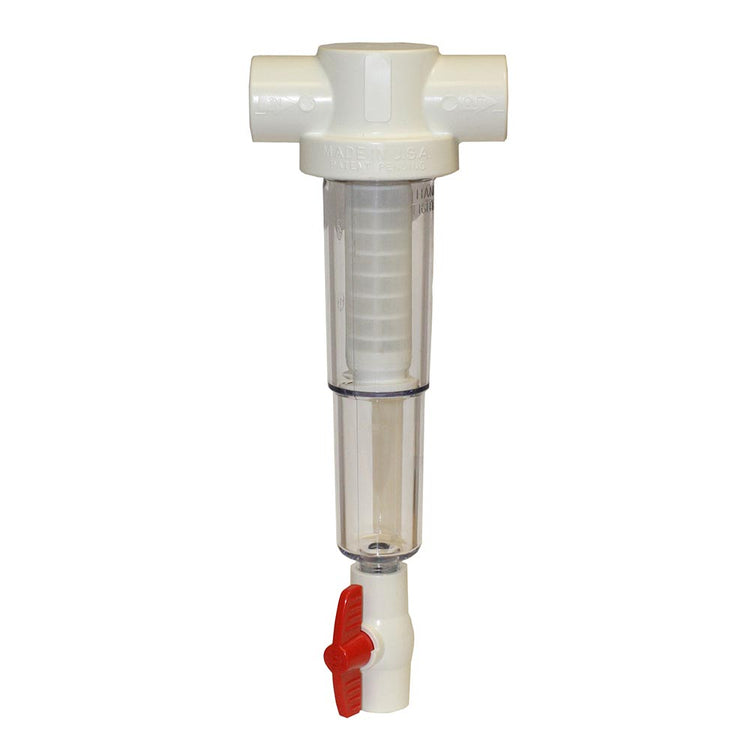

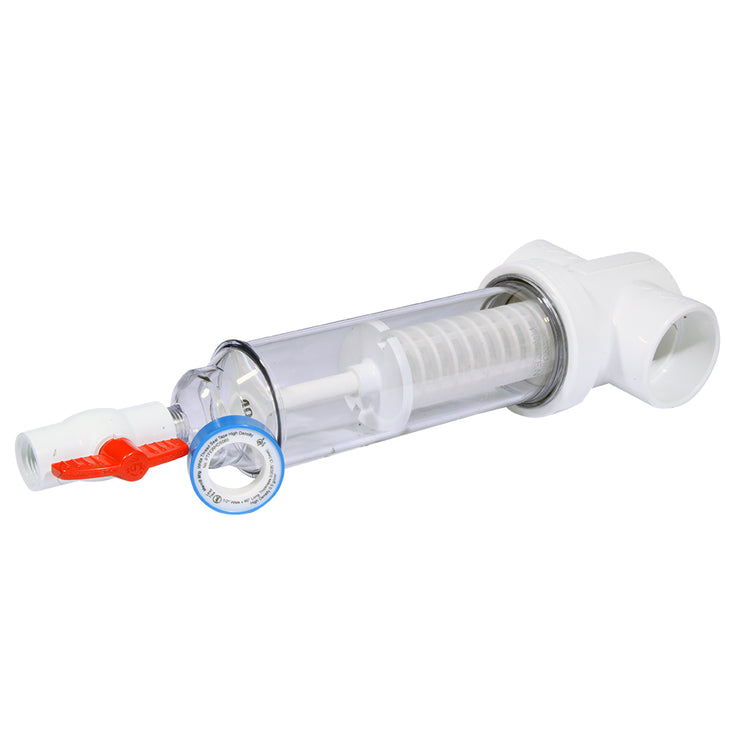

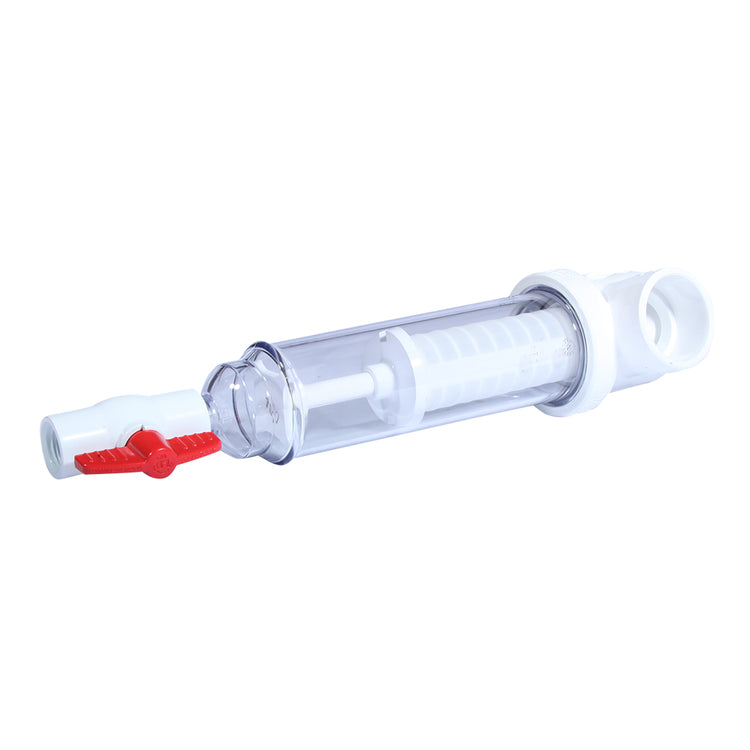

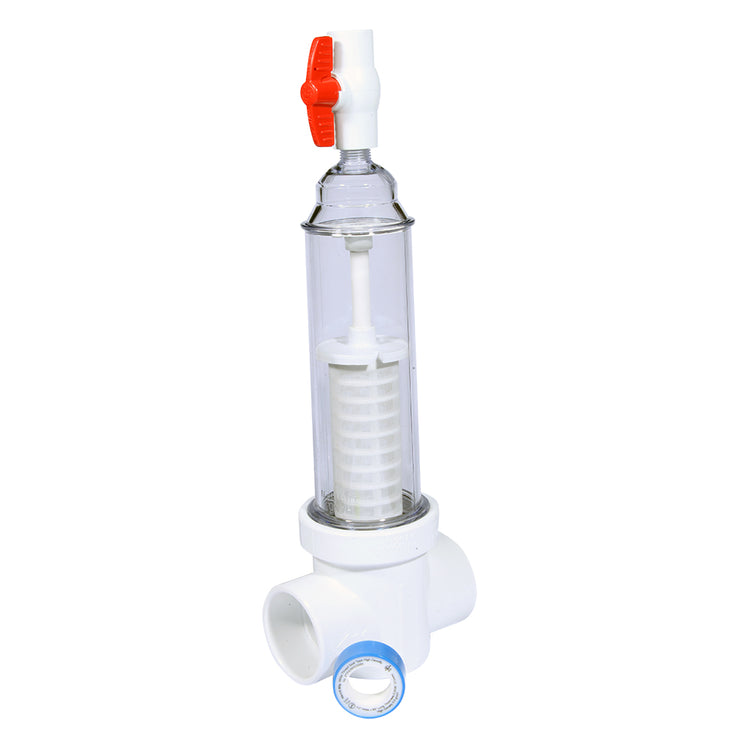

Sediment Trapper Model

- SLIPxSLIP connections

- Larger reservoir for more sediment

- Centrifuge spin-down type sediment separation

- Unique element design traps sediment in the lower reservoir of clear cover

- Reusable polyester or stainless steel filter screens with several mesh sizes available

- Sediment is visible through clear cover and quickly removed by opening ball valve at bottom of filter cover

- Clear cover easily removed for total cleaning (No tools required - use of tools voids warranty, hand tighten only)

- Flow capacity for the entire system

- Max. operating pressure 150psi at 73 degrees Fahrenheit

1" Pipe Size:

- Length: 11-1/2"

- Width: 5"

- Recommended Flow Rate: 2gpm minimum & 20gpm maximum

1-1/2" Pipe Size:

- Length: 12"

- Width: 5-1/2"

- Recommended Flow Rate: 10gpm minimum & 50gpm maximum

2" Pipe Size:

- Length: 15"

- Width: 6"

- Recommended Flow Rate: 18gpm minimum & 100gpm maximum
