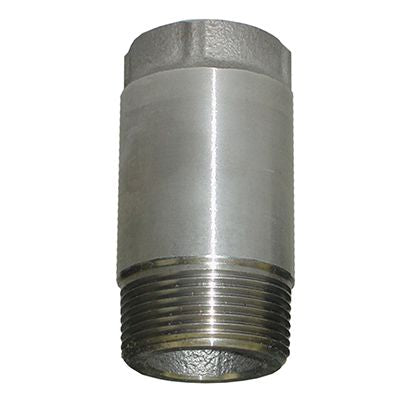

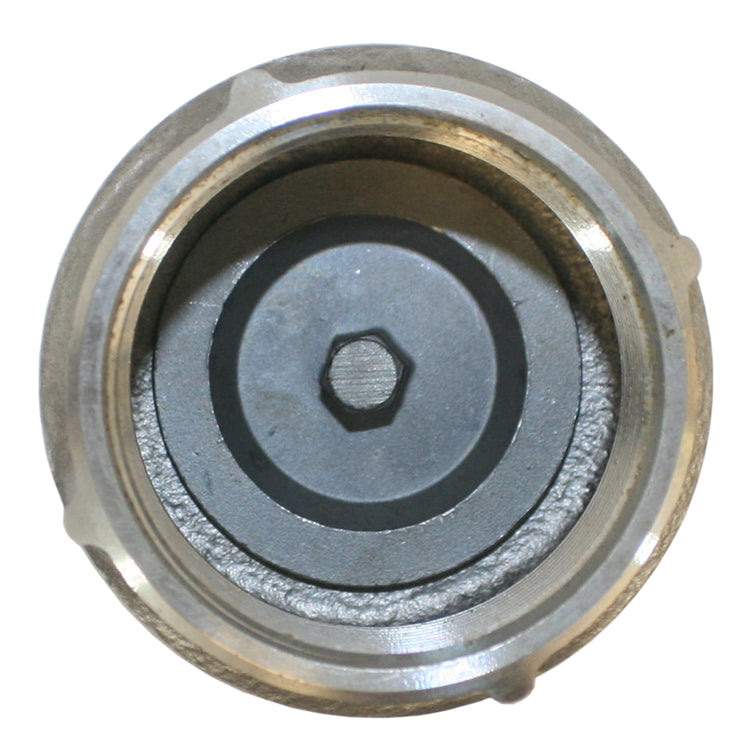

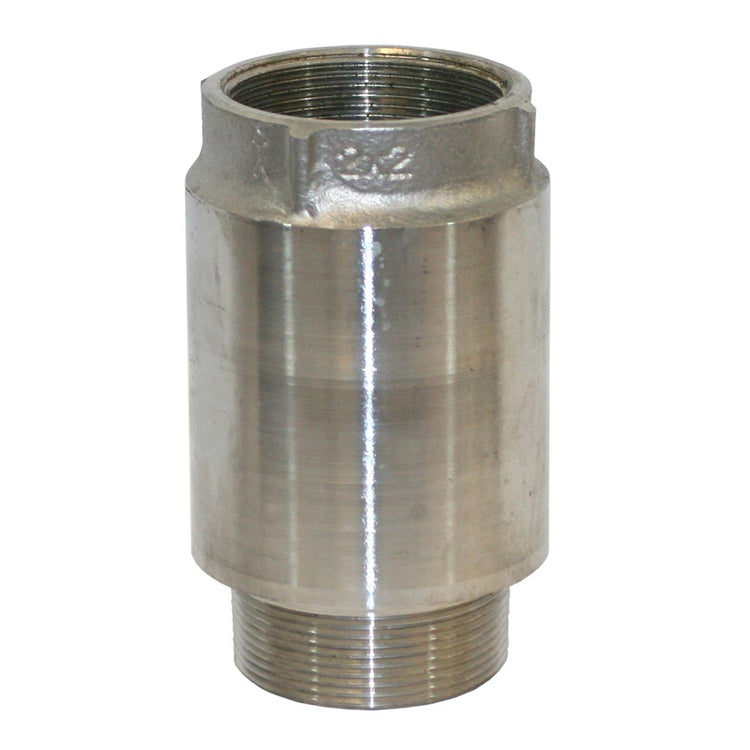

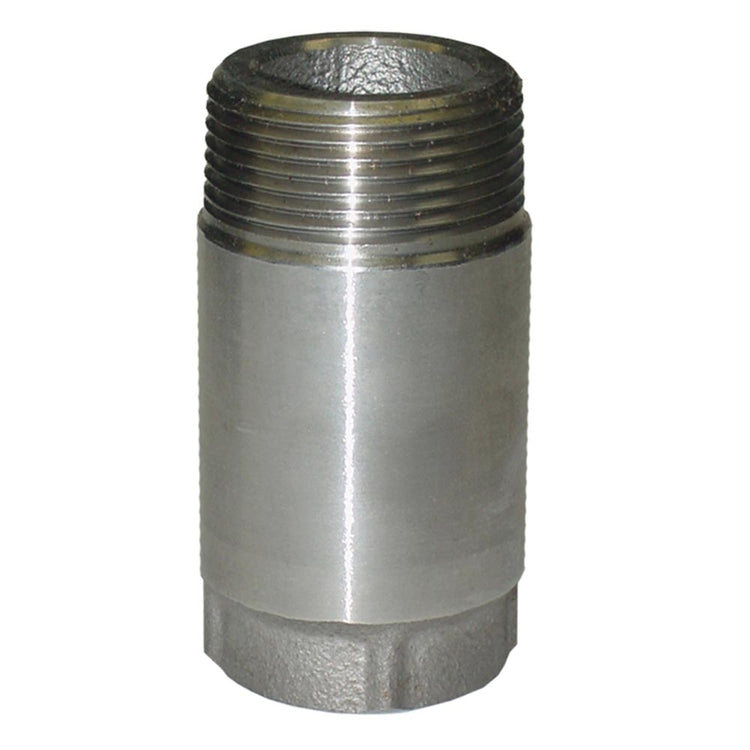

Stainless Steel Check Valves - 1000 Series

SKU:

Barcode:

No Spin Poppet   - Solid 304 stainless steel construction - Stainless steel check valves are rated for a maximum weight of 2000lbs. in tension (down pull) - All parts stainless steel - spring, lock nut on poppet, and nut retaining cup locks spring to nut - Guide bearing of Delrin around poppet st......Read more

  • $70.50

Pipe Size
Diameter
Length
+ -
  • american express
  • apple pay
  • diners club
  • discover
  • facebook pay
  • google pay
  • master
  • paypal
  • venmo
  • visa
Description

No Spin Poppet



- Solid 304 stainless steel construction

- Stainless steel check valves are rated for a maximum weight of 2000lbs. in tension (down pull)

- All parts stainless steel - spring, lock nut on poppet, and nut retaining cup locks spring to nut

- Guide bearing of Delrin around poppet stem for straight operation and eliminates wear

- No-spin poppet for demanding installation directly above the submersible pump

- Ideal for Ag chemical applications - WARNING - not to be used with anhydrous ammonia

- Only requires 1.5 psi to open CVSE - has a VITON O-ring seal to prevent drain back in harsh chemical environments

- Rated at 450psi max

- Includes VITON O-ring for your environment needs



Temp Ratings

- Max temp. for CVS & FVS 190 degrees Fahrenheit

- Temp. range for CVSE & FVSE with VITON O-ring -4 to 392 degrees Fahrenheit
