Y Series Self Closing Yard Hydrant

SKU:

Barcode:

The Merrill Y1 & Y2 self-closing Frost Proof Yard Hydrants automatically shut off to keep wasted water to a minimum. A stainless steel spring and water pressure shut the hydrant off when a user is not operating the hydrant, making the Y1 & Y2 perfect options for public use. Both hydrants ......Read more

  • $300.00

Material
Hydrant Type
Bury Depth
+ -
  • american express
  • apple pay
  • diners club
  • discover
  • elo
  • facebook pay
  • google pay
  • jcb
  • master
  • paypal
  • venmo
  • visa
Description

The Merrill Y1 & Y2 self-closing Frost Proof Yard Hydrants automatically shut off to keep wasted water to a minimum. A stainless steel spring and water pressure shut the hydrant off when a user is not operating the hydrant, making the Y1 & Y2 perfect options for public use. Both hydrants also have a locking feature to lock the hydrant in the on position if needed, and off for when it should not be used. Both hydrants are also designed with swivel parts, allowing for the hydrant insides to be removed and/or replaced without having to dig the hydrant up. The Y1 & Y2 are a great option for anyone looking to maintain control over water usage when others may be using the hydrant!

Specifications

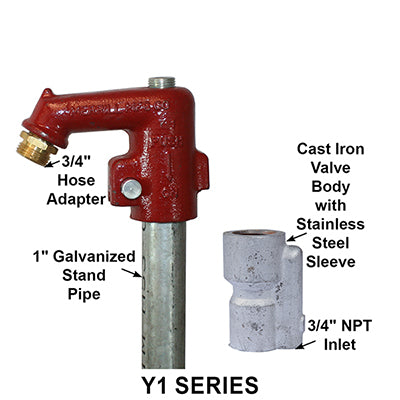

Standard 3/4" Y-1 Hydrants
Inlet - 3/4" NPT
Outlet - 3/4" Brass or No Lead Brass Hose Thread Adapter
Self Closing can be locked open or closed
Brass Plunger with 3 quad ring seals
1" Glavanized Pipe and Galvanaized Internal Pipe

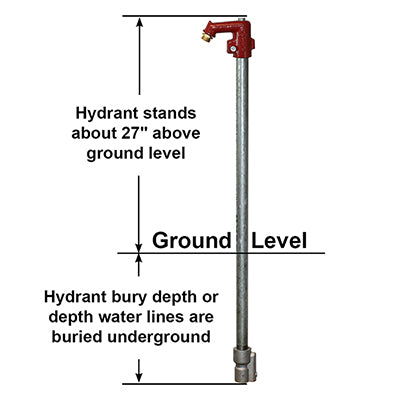

Outlet should stand 27" above ground

Standard 3/4" Y-2 Hydrants
Inlet - 3/4" NPT
Outlet - 3/4" Brass or No Lead Brass Hose Thread Adapter
Self Closing can be locked open or closed
Brass Plunger with 3 quad ring seals
1" Glavanized Pipe and Galvanaized Internal Pipe

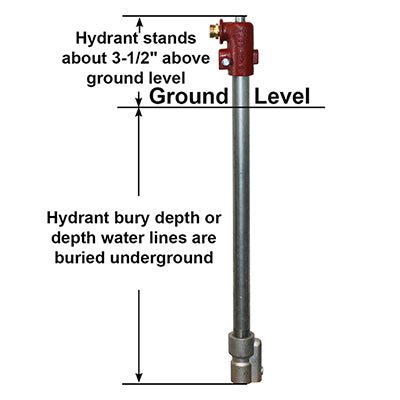

Outlet should stand 3-1/2" above ground

Features and Benefits

Y-1

Self-Closing - A stainless steel spring and water pressure close the hydrant ensuring that water is not wasted and providing a perfect option for public use

Locks Open or Closed - Push lock button to lock hydrant in open or closed position (Call for options without push lock)

No-Lead Brass Hose Adapter - Heavy-duty hose adapter for standard 3/4" hose coupling

Extra Thick Walled Head Casting - Built for years of use and abuse

Flow Control Valve Available - Hydrant sold without flow control valve, but can be ordered separately. Allows for flow rate to be regulated

Cap Screws - Hydrants have 3/8" x 5/16" self-locking socket head cap screws, and assembled with a locking sealant for strong head to pipe hold

High Quality Galvanized Pipe - 1" extra heavy pipe on outside and galvanized pipe on inside for corrosion protection

No Exposed Threads - No exposed threads on inside or outside pipe to rust

Cast Iron Body with Stainless Steel Sleeve - Enhances the seal life of the plunger

Solid Brass Plunger - 3 ethylene propylene quad ring seals, self-lubricating and never come out of adjustment, and withstand higher pressures

Swivel Parts - Permit withdrawal of all moving parts without digging up hydrant. A 3/16" hex key will allow disassembly of hydrant by removing two cap screws and pull up inside pipe with plunger for inspection

* Exclusive Merrill Quality Features NOTE: Recommended Maximum Operating Pressure 60 psi (Due to Self-Closing Design)



Y-2

Self-Closing - A stainless steel spring and water pressure close the hydrant ensuring that water is not wasted and providing a perfect option for public use

Locks Open or Closed - Push lock button to lock hydrant in open or closed position (Call for options without push lock)

No-Lead Brass Hose Adapter - Heavy-duty hose adapter for standard 3/4" hose coupling

Extra Thick Walled Head Casting - Built for years of use and abuse

Head Plug - Provides easier plumbing attachment

Cap Screws - Hydrants have 3/8" x 5/16" self-locking socket head cap screws, and assembled with a locking sealant for strong head to pipe hold

High Quality Galvanized Pipe - 1" extra heavy pipe on outside and galvanized pipe on inside for corrosion protection

No Exposed Threads - No exposed threads on inside or outside pipe to rust

Cast Iron Body with Stainless Steel Sleeve - Enhances the seal life of the plunger

Solid Brass Plunger - 3 ethylene propylene quad ring seals, self-lubricating and never come out of adjustment, and withstand higher pressures

Swivel Parts - Permit withdrawal of all moving parts without digging up hydrant. A 3/16" hex key will allow disassembly of hydrant by removing two cap screws and pull up inside pipe with plunger for inspection

* Exclusive Merrill Quality Features NOTE: Recommended Maximum Operating Pressure 60 psi (Due to Self-Closing Design)

Accessories

Accessories for Hydrants with 3/4" Inlet No Lead Brass Connection
