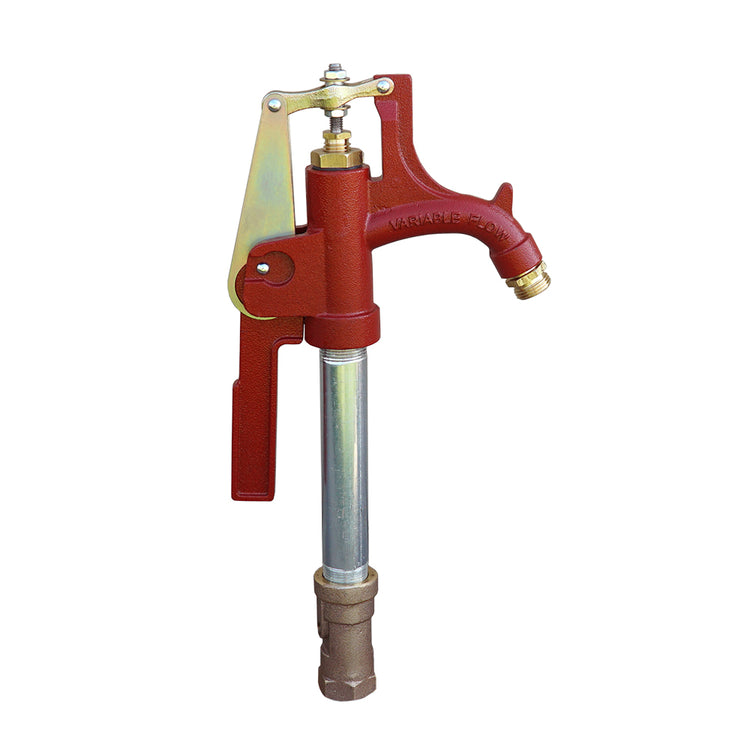

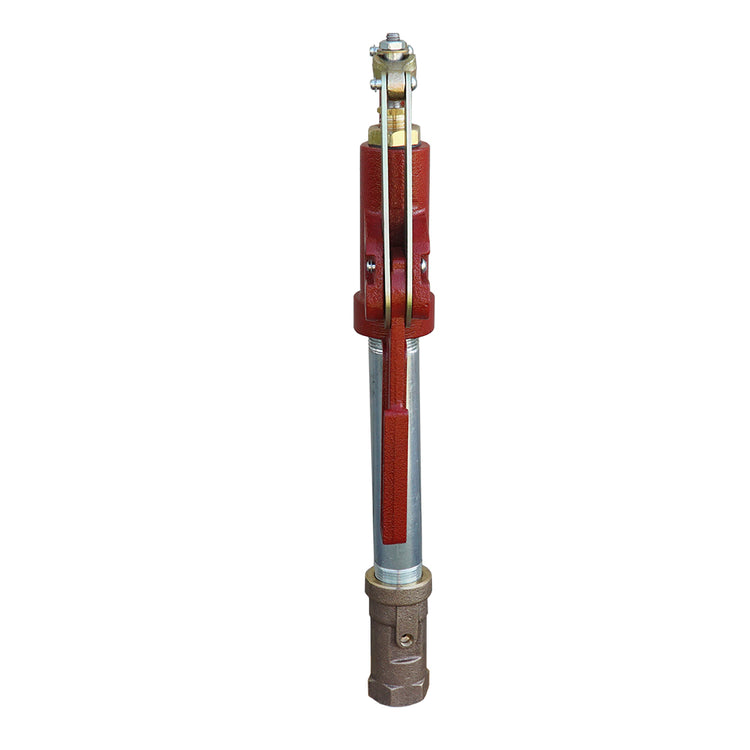

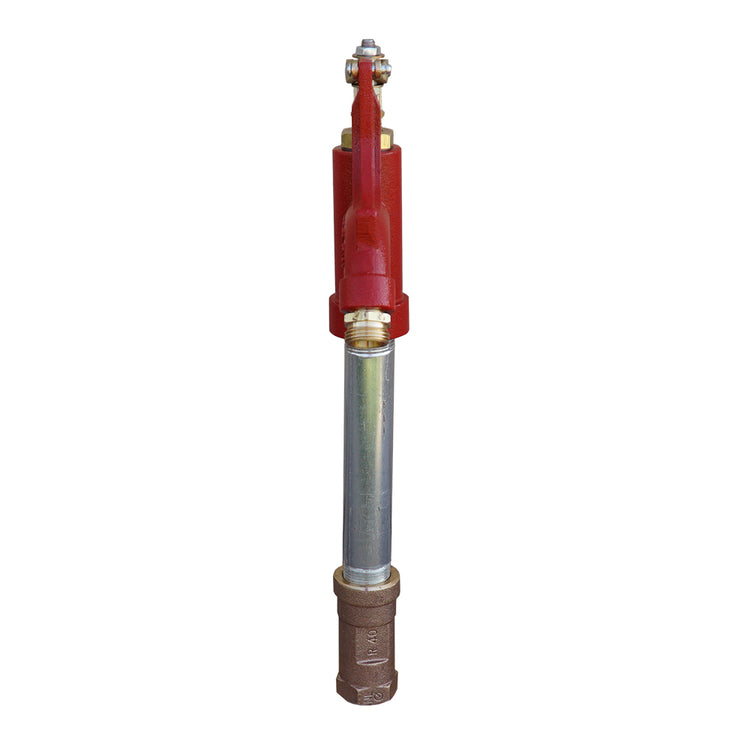

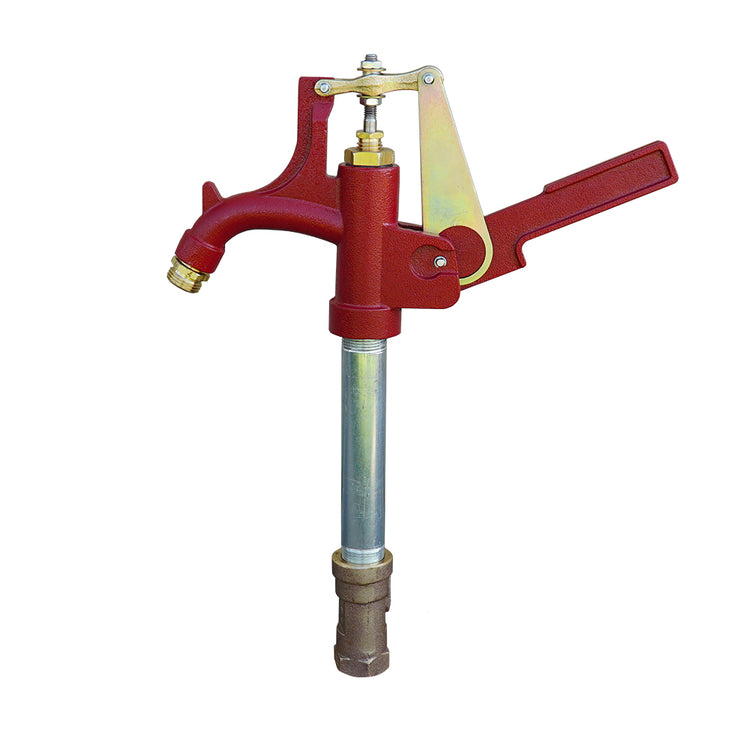

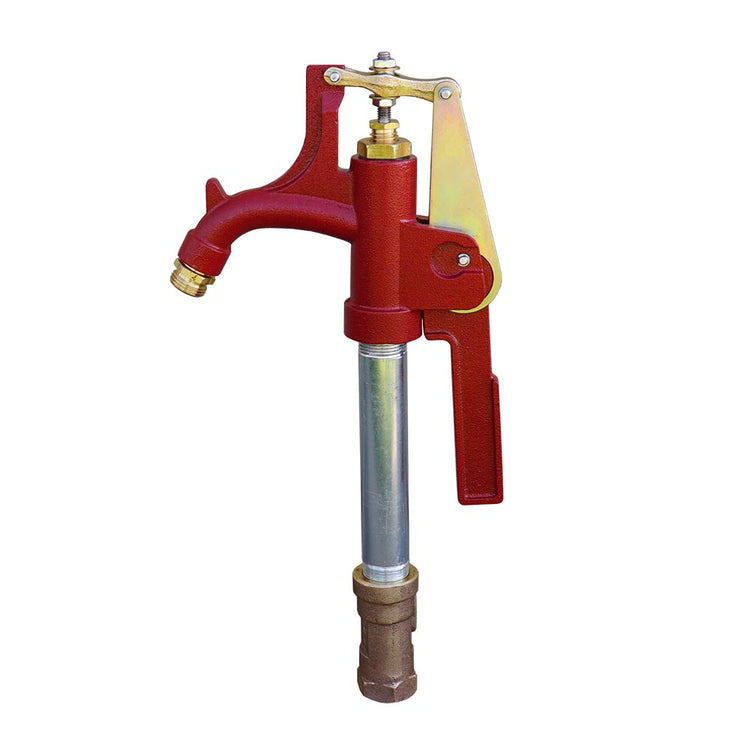

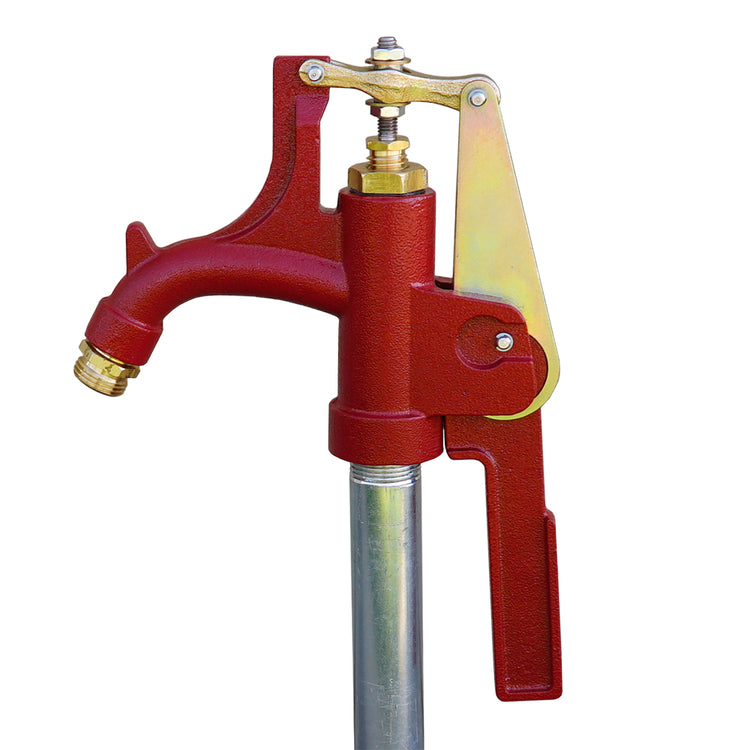

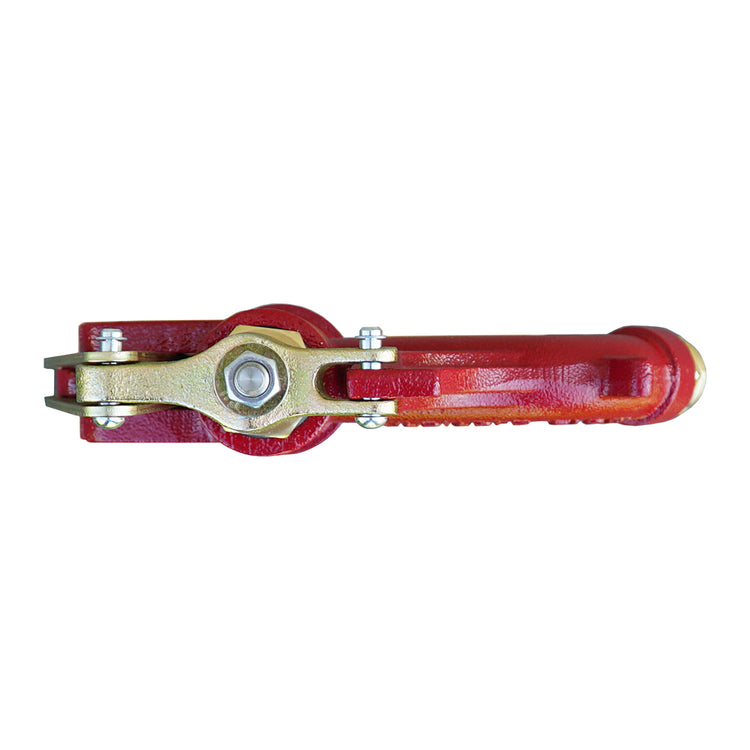

R-6000 Frost Proof Yard Hydrant

SKU:

Barcode:

The Merrill R-6000 Yard Hydrant brings a different design to the Merrill line of frost-proof yard hydrants. Unlike Merrill's typical over-the-head handle design, the R-6000 features a lower placement for the on/off handle. Similar to other Merrill designs, adjustment set screws have been eliminat......Read more

  • $216.00

Material
Hydrant Type
Bury Depth
+ -
  • american express
  • apple pay
  • diners club
  • discover
  • elo
  • facebook pay
  • google pay
  • jcb
  • master
  • paypal
  • venmo
  • visa
Description

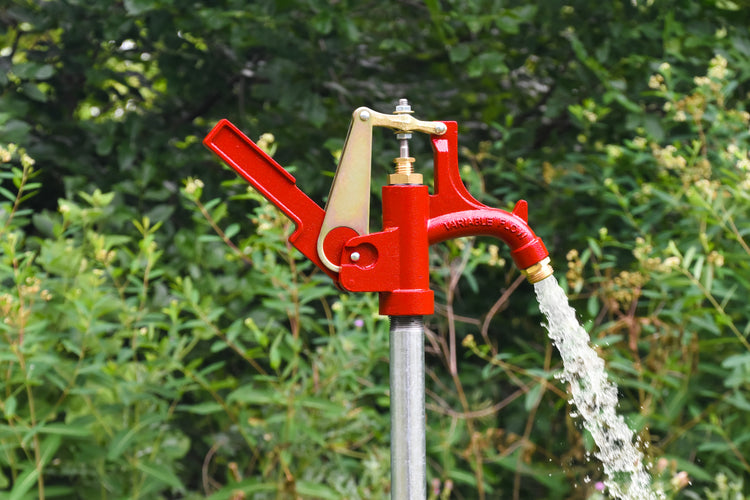

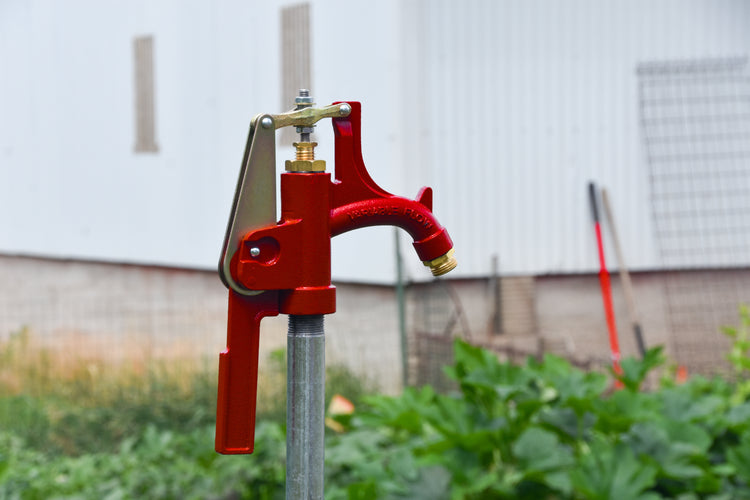

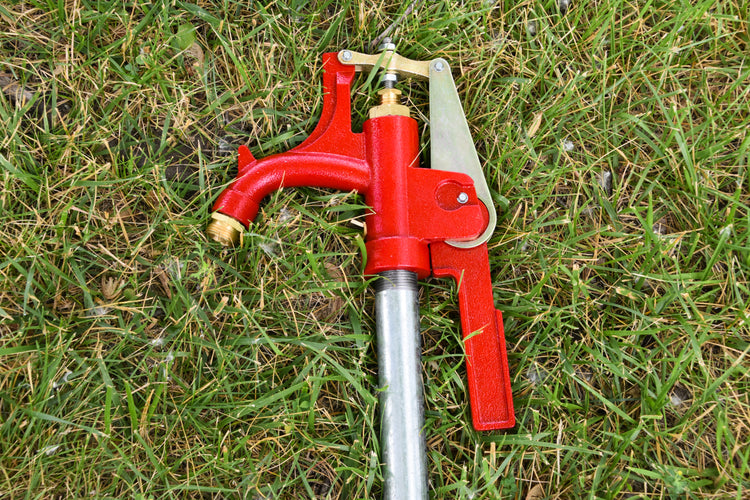

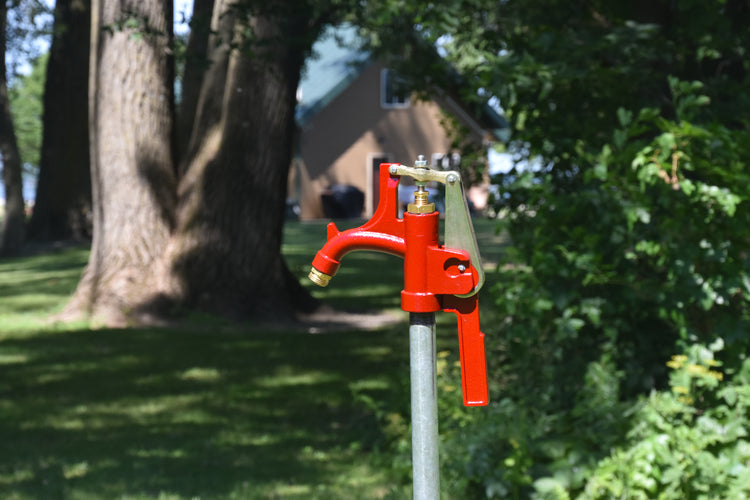

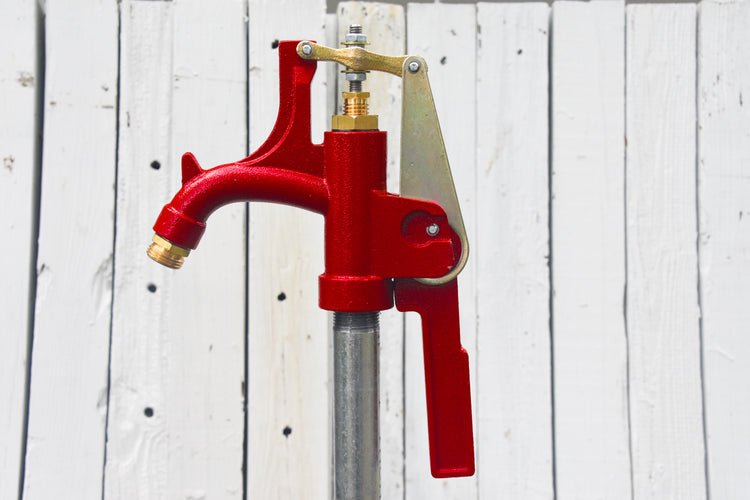

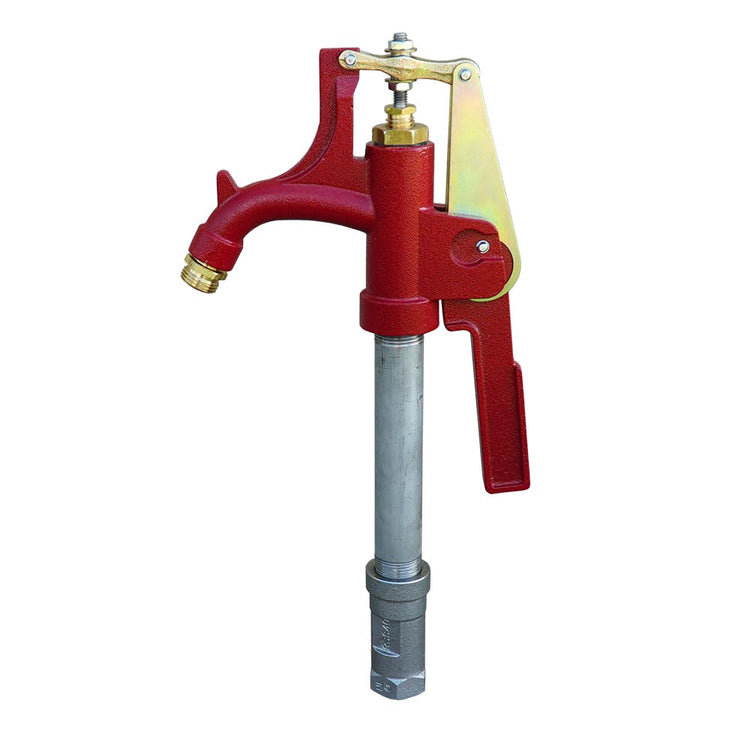

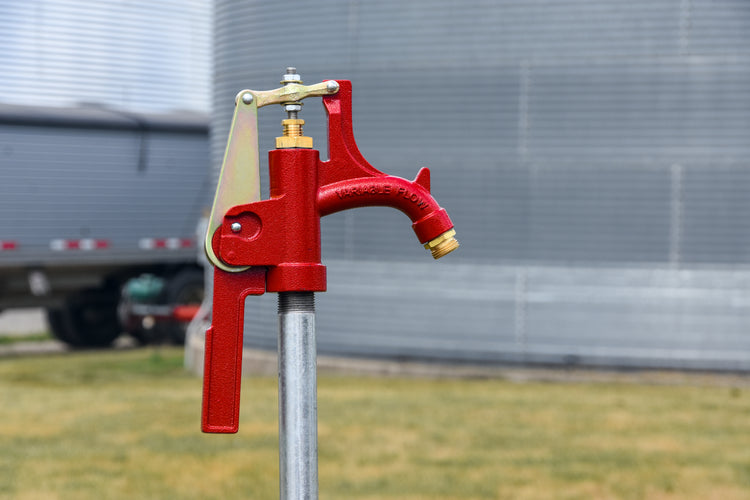

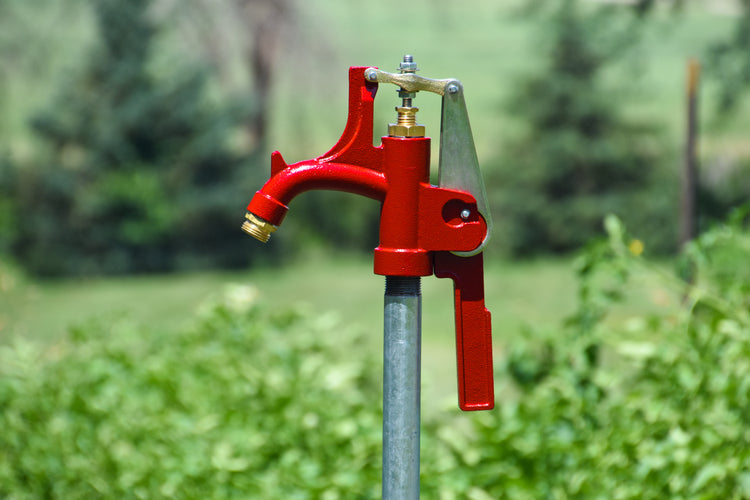

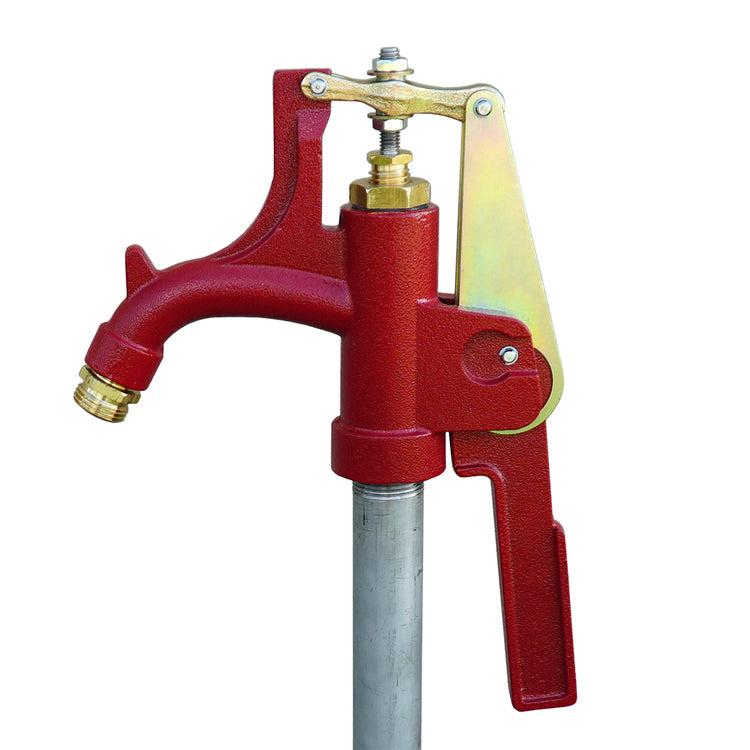

The Merrill R-6000 Yard Hydrant brings a different design to the Merrill line of frost-proof yard hydrants. Unlike Merrill's typical over-the-head handle design, the R-6000 features a lower placement for the on/off handle. Similar to other Merrill designs, adjustment set screws have been eliminated and replaced with nuts to eliminate the loss of adjustments due to rusting. The unique head design allows for the removal of the packing gland, operating rod, and plunger all without having to remove the hydrant head. This enables quick and easy replacements for users if needed. The R-6000 uses Merrill's one-piece, self-lubricating plunger allowing for a secured seal and extended life expectancy. An incorporated drain hole allows water to drain out creating confidence in year-round use in all climates.

Specifications

No Lead 1" R-6000
Inlet - 1" NPT
Outlet - 3/4" Hose Thread Adapter
Stainless Steel Operating Rod Thru Teflon Packing
1" Galvanized Stand Pipe

Stainless Steel 1" R-6000
Inlet - 1" NPT
Outlet - 3/4" Hose Thread Adapter
Stainless Steel Operating Rod Thru Teflon Packing
1" Stainless Steel Stand Pipe

Features & Benefits

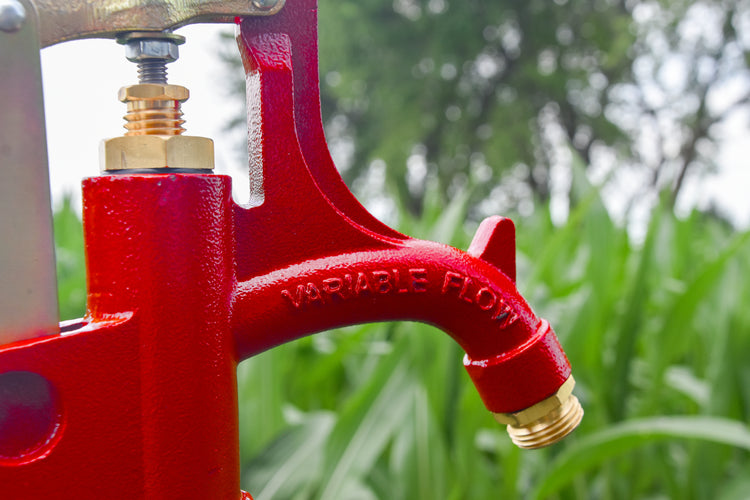

Heavy Cast Iron Head - Time-proven design built for years of high flow rate use

1040 Steel Draw Straps -Reduced wear of straps and eliminates side pull on the operating rod

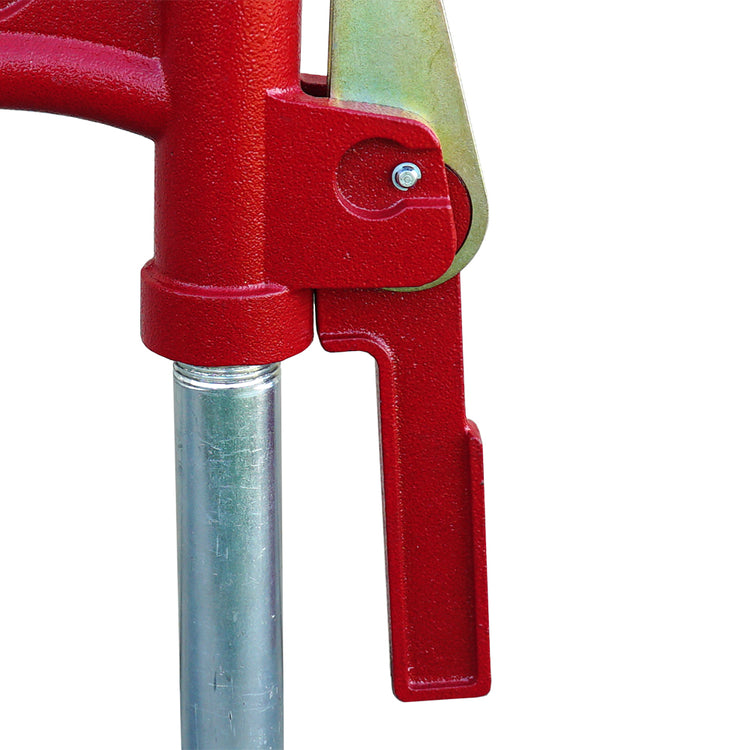

Heavy Cast Iron Handle - Easy to grip and built for years of use

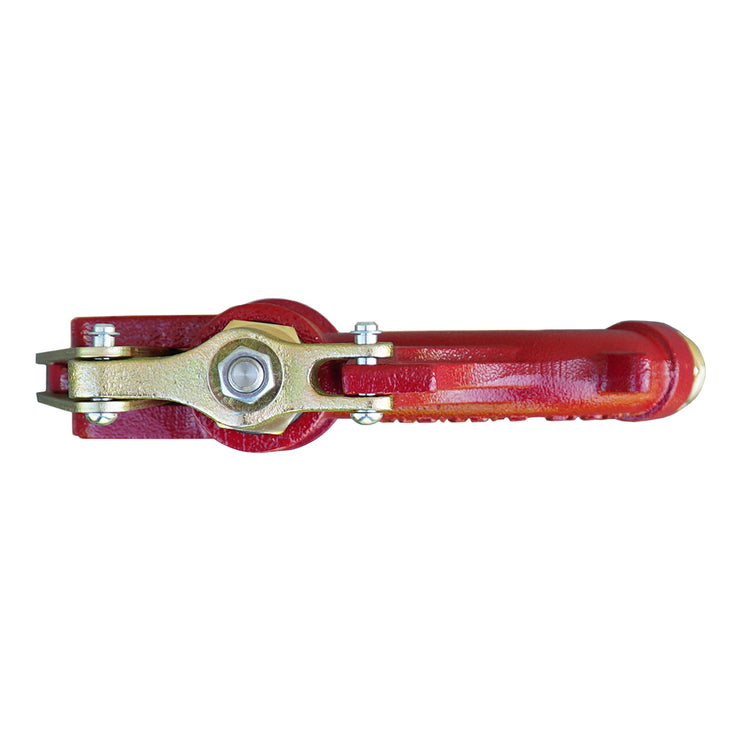

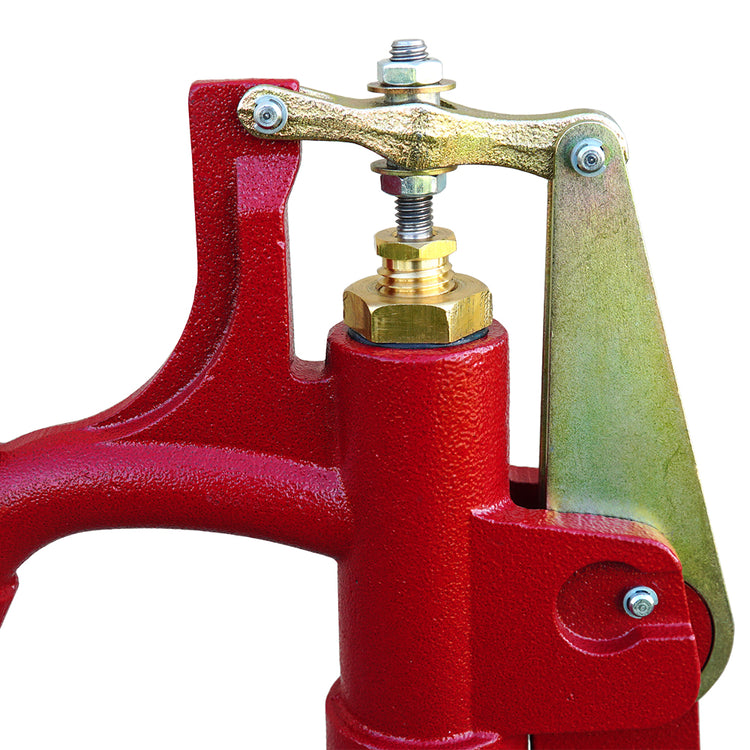

Rocker Arm and Operating Rod with Two Nuts - Provides years of adjustability without concern for rusted or stuck set screws

Stainless Steel Operating Rod - Quality material for long life

Packing Gland with Teflon® Packing - Non-corrosive for extended use

Easy Plunger Replacement - Remove the packing gland and pull the operating rod and plunger out. No need to remove the hydrant head!

Schedule 40 Galvanized Riser Pipe - Made to last

1" Valve Inlet Size - Easy installation and higher flow rate

One Piece Molded Plunger with Lubricant - Uses a double seal design for a shutoff you can depend on

Self-Lubricating Plunger - Diminishes concern over sticking and bonding creating a longer life

Double Bypass Valve Body - Allows for a higher flow rate

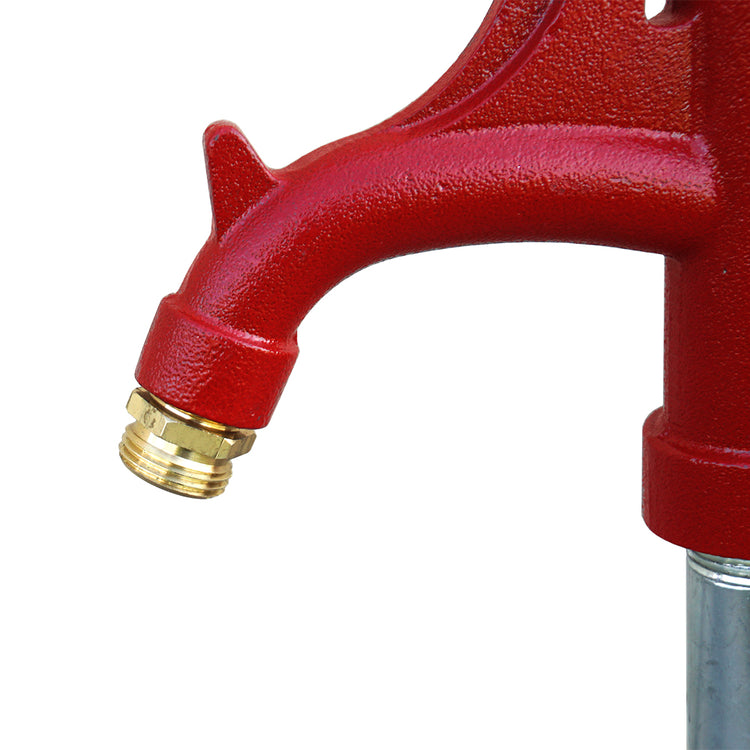

Hose Thread Adapter - Outlet for easy hose connection

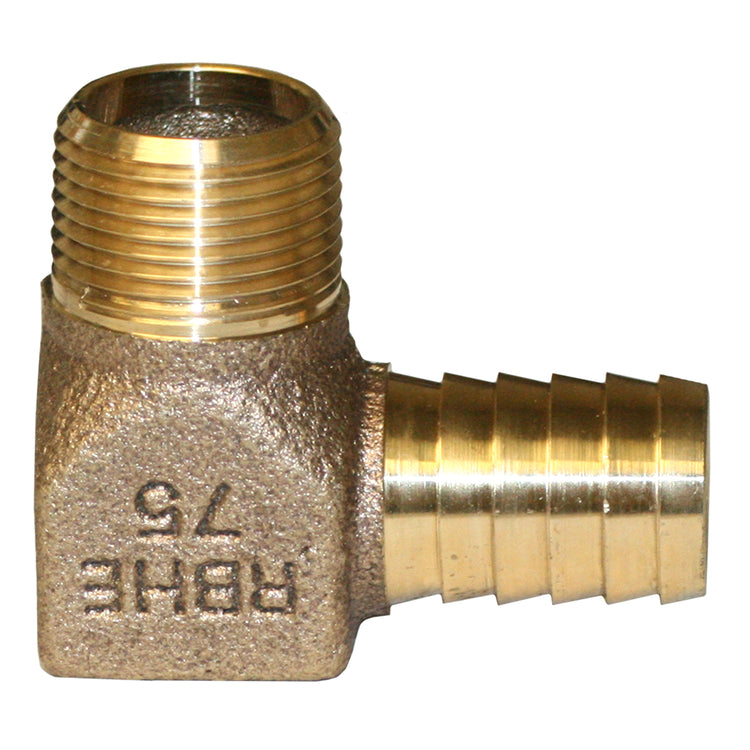

Accessories

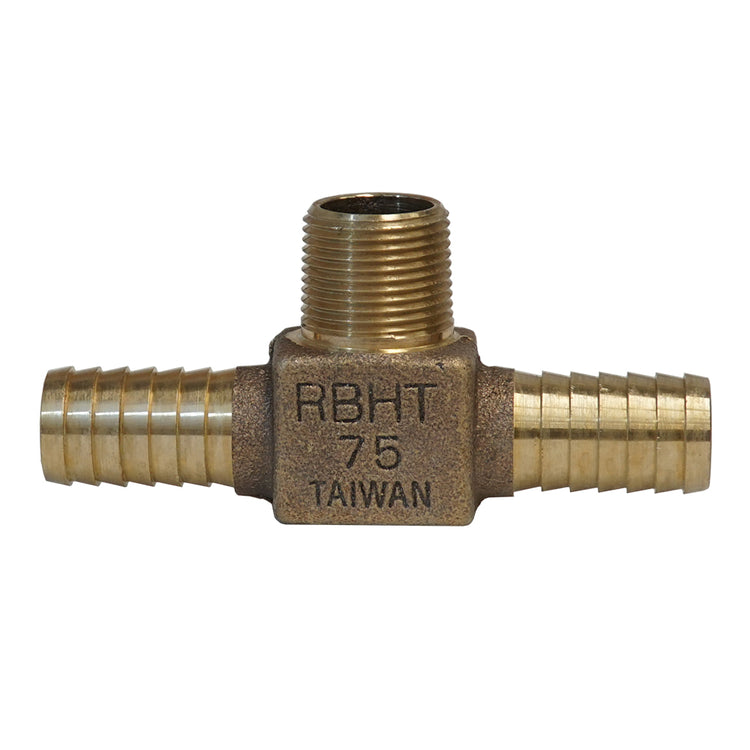

Accessories for Hydrants with 1" Inlet No Lead Brass Connection

Accessories for Hydrants with 1" Inlet Stainless Steel Connection
